What is EasySnap?

1. Introduction

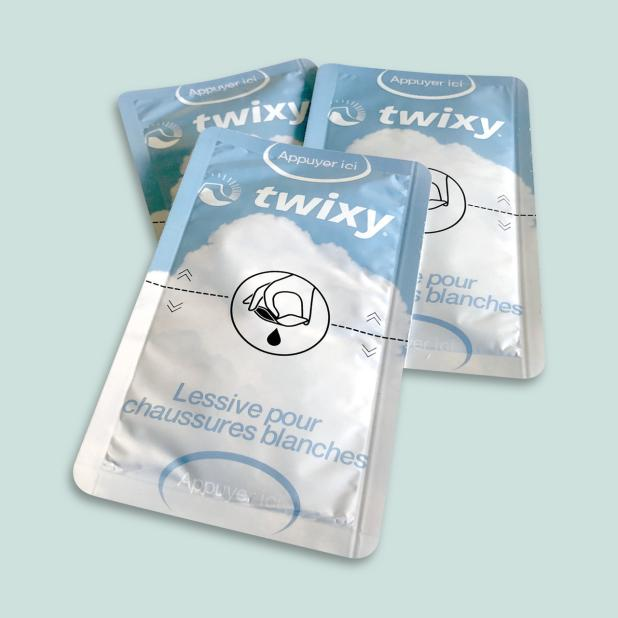

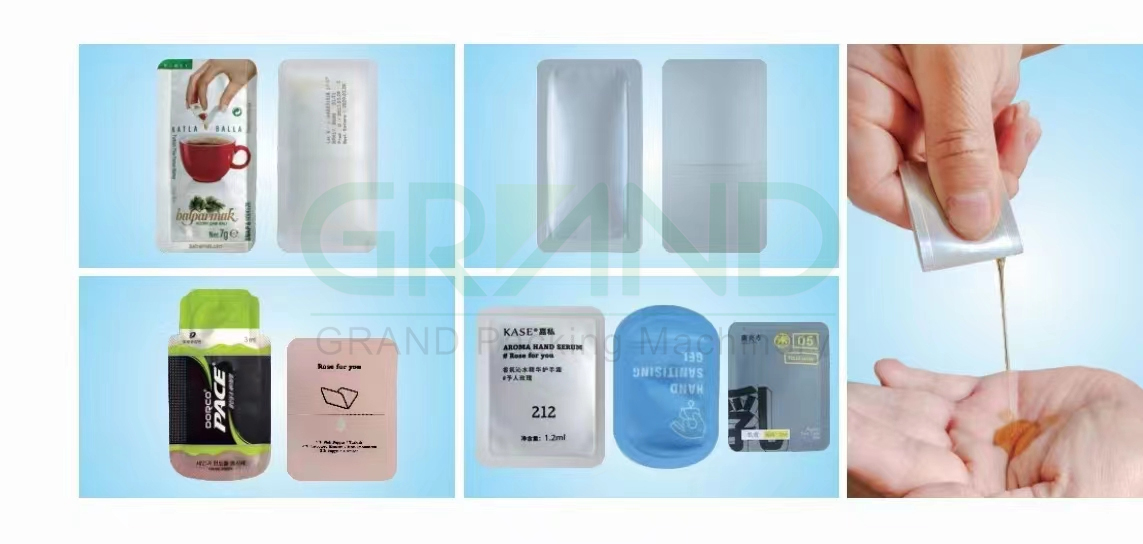

The easy-snap technology has created easy-snap, a single serve pack with a worldwide patented opening system, innovative and revolutionary. Fold an easy-snap pack in the middle, with just one hand, to open it and dispense the content.

The easy-snap technology can replace the production of any conventional portion pack containers, including small cups, small bottles and tubes, packing content from 0.1ml to 25 ml, with many advantages in term of flexibility and production cost for units.

This packaging method originated from Europe. On the basis of it, engineers of Grand Machinery have optimized and improved it. Finally, a more economical, efficient and high-quality packaging machine was developed (pay tribute to the European engineers who proposed the concept).

2. Features

3. Application

Easy-snap can replace any conventional sachet packs in food industry, pharmaceuticals, cosmetic and chemicals.

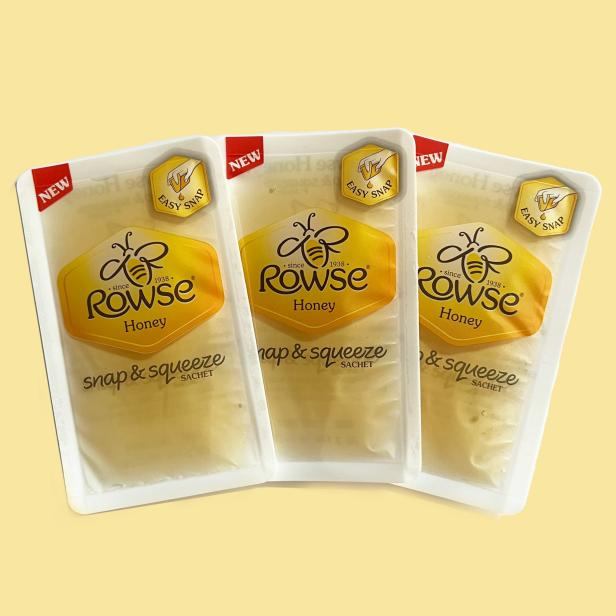

An easy-snap packaging machinery can be your best solutions with ketchup, mayonnaise, salad dressing, jam, melted cheese, mustard, spirits, syrups, honey, liquid medications, baby-care products, ointments, toothpaste, shampoo, hair conditioner, liquid hand-sanitizer, body lotions, creams, bath foam, moisturizers, sun creams, liquid detergents, promotional dispenser, and many others.

For food	For Beauty Cosmetics	For Medical Devices	For Pharma	For Chemicals

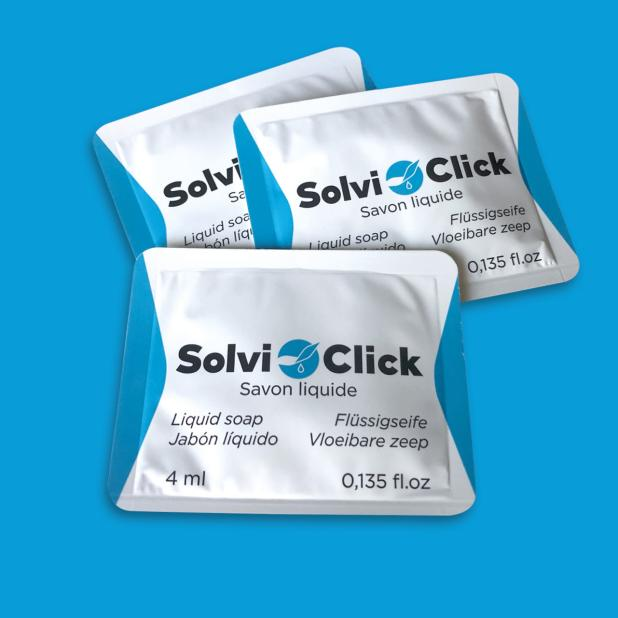

Ideal for the food industry, easy snap develops new packaging and methods of use for condiments, sauces, toppings and so on.	Easy-snap is of great use in the fields of cosmetics, for products such as cleansers, perfumes, amenity kit and more. It enhances the value of mono-dose units or samples.	The outflow of the product in an easy-snap pack is controlled and hygienic. This makes the easy-snap unique for medical devices in single units.	The safety features and integrity of the product make easy-snap perfect for such applications in the pharmaceutical industry as syrups, aspirin, disinfectant, eye drops and all products that need a precise and clean dispensing.	Easy-snap also has endless fields of application in the chemical industry, such as for detergents, bleach, soaps, lubricants, oils, etc.

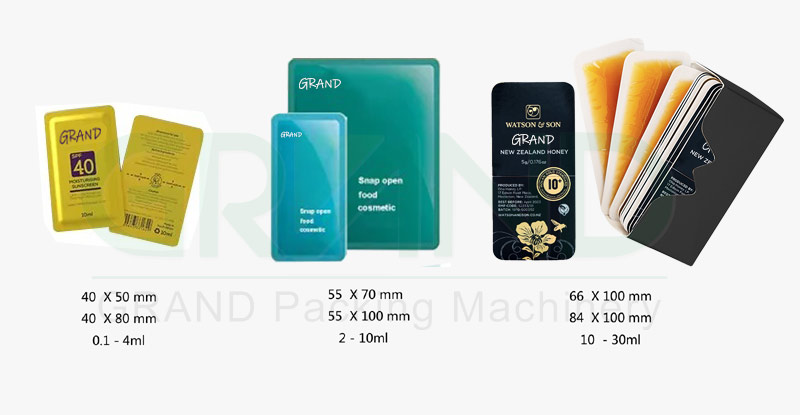

4. Sizes of easy-snap we can provide

        Note: The particular volume might not agree with the given, considering the liquid weight and density.

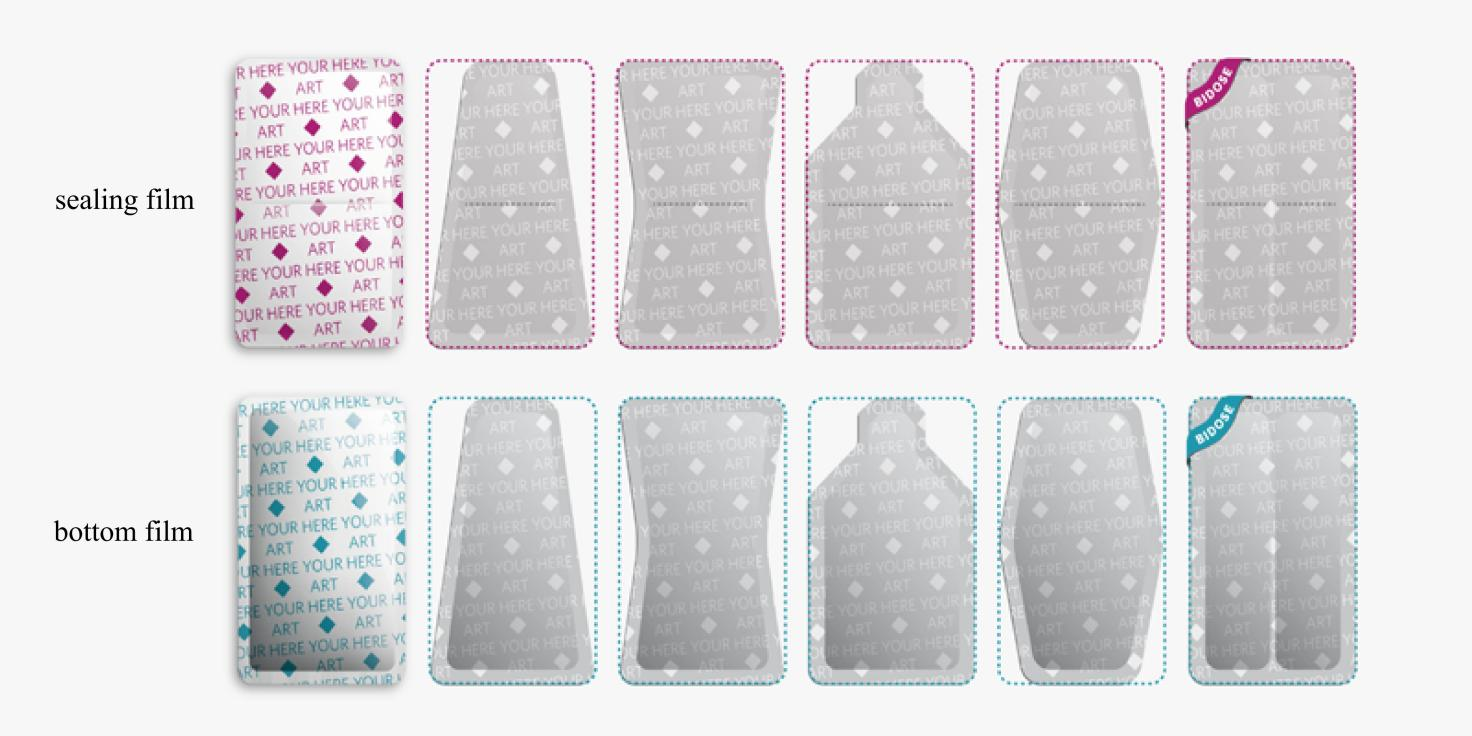

5. Patterns and designs we can provide

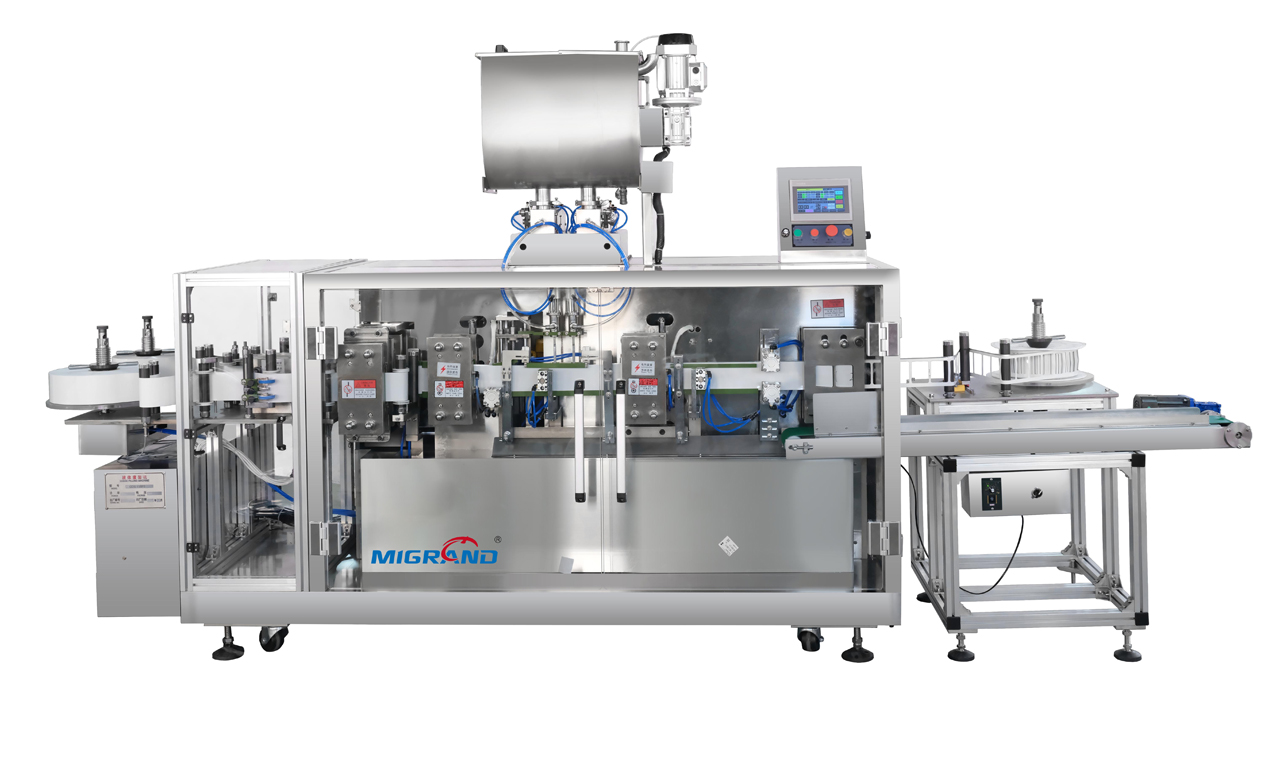

6. Easysnap packaging machines

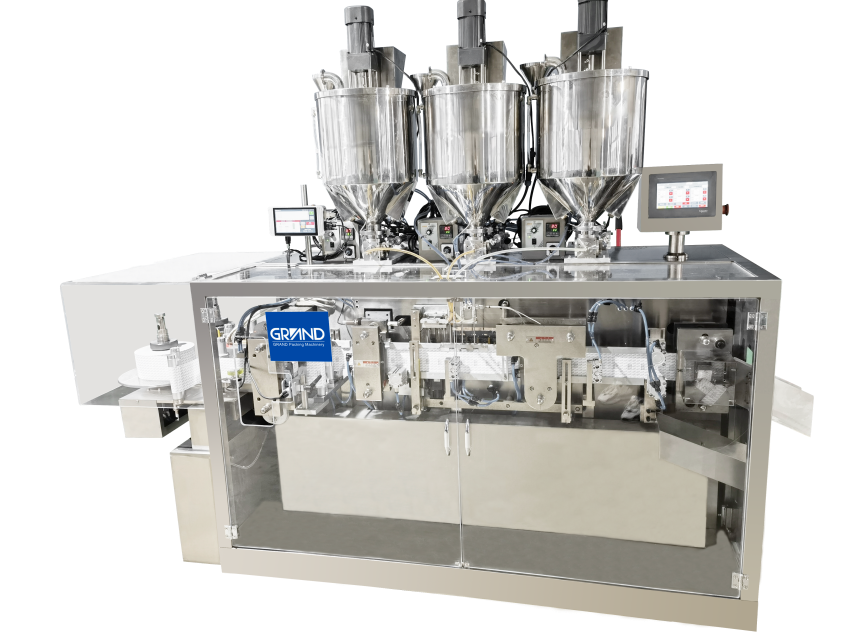

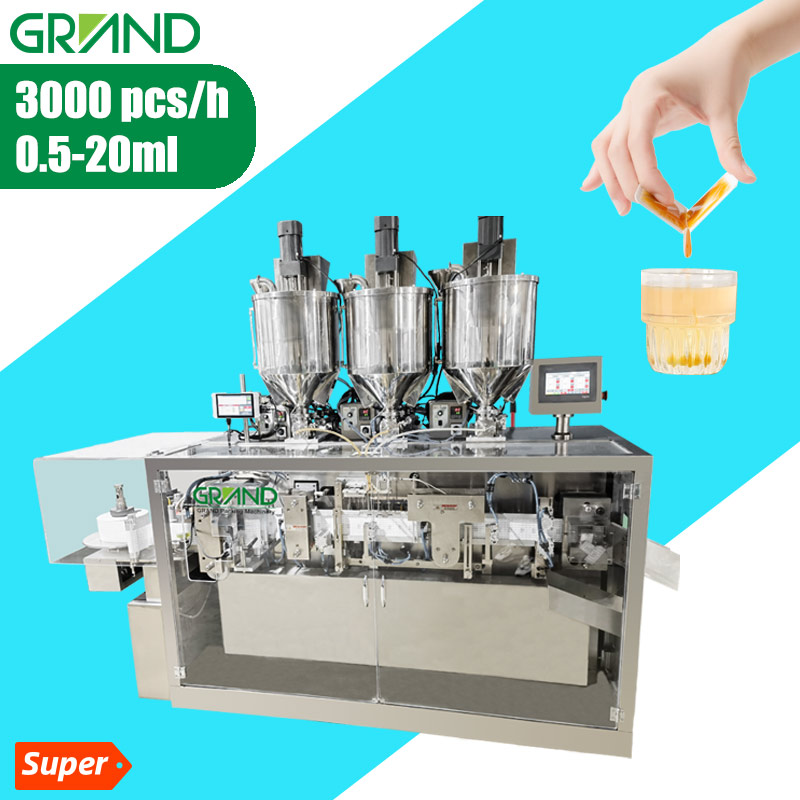

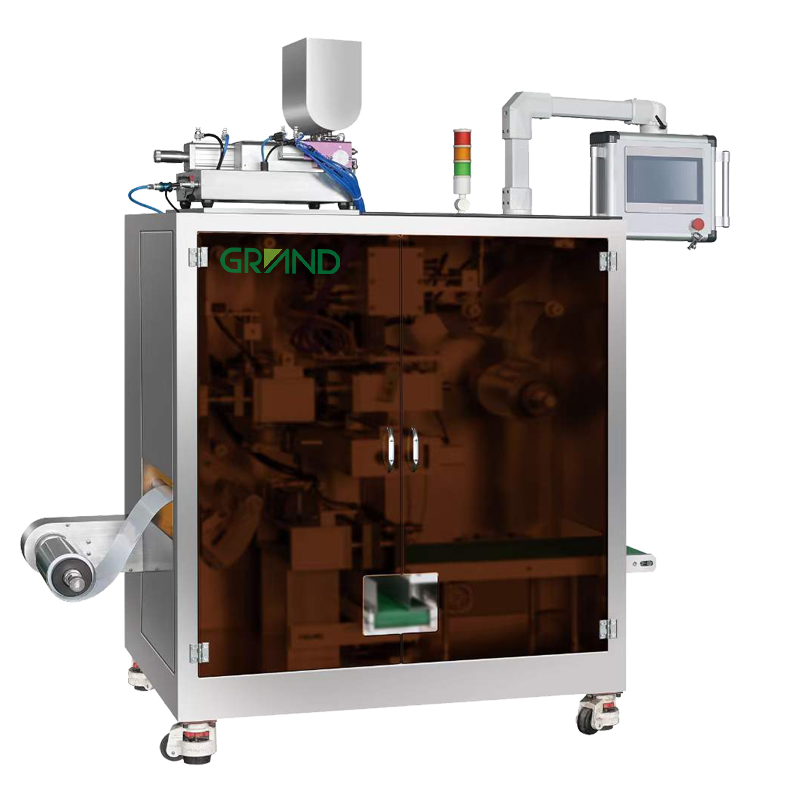

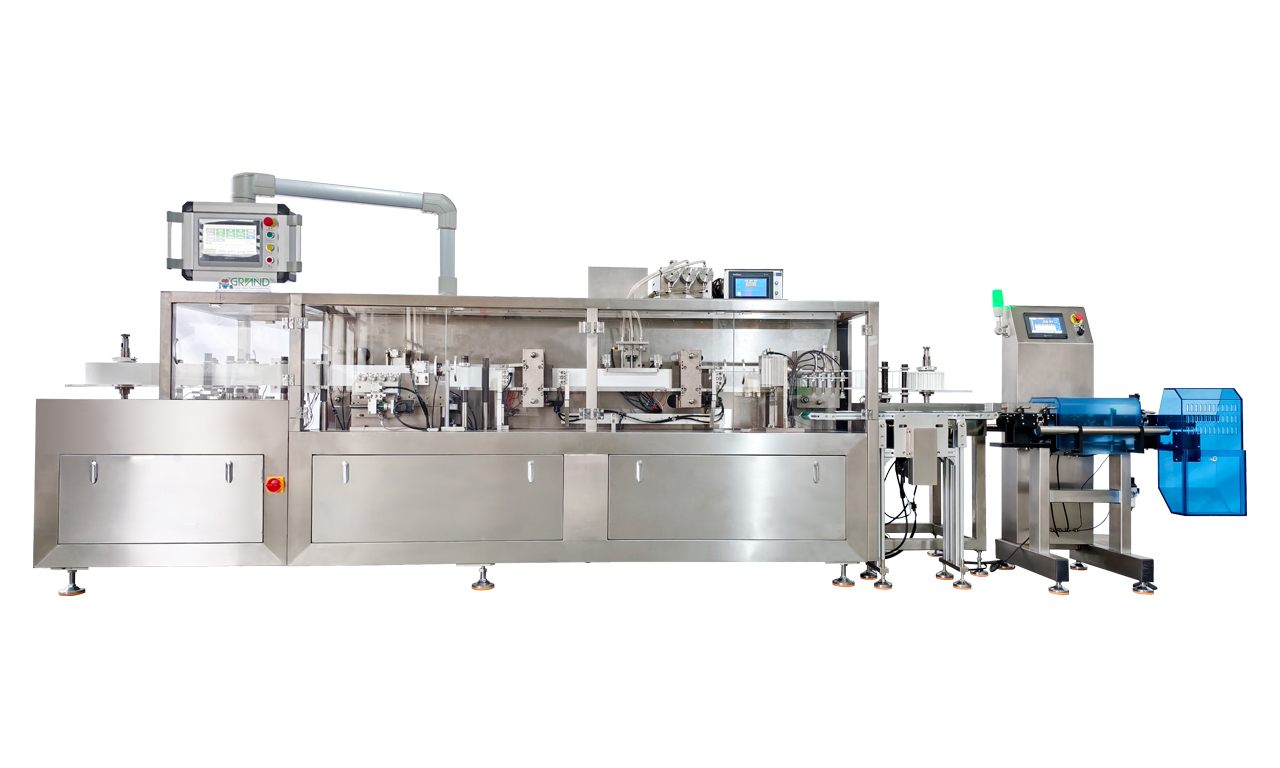

Combining the current market demand and our available machinery manufacturing capacity, we, Grand Machinery, develops two kinds of card-type easy-snap forming, filling and sealing machines. Our machines can be more cost-effective than other similar equipment in Europe and America when they have the same functions.

7. Performance and features

1) PLC control and stepless frequency control of speed.

2) Working processes include film unwinding, forming, embossing, heat sealing, filling, tail sealing and punching.

3) Photoelectric pattern registration on a single side and 1-5 lines of characters, including date, coded by an ink-jet printer on the outer side.

4) Peristaltic pump or piston pump for filling volume control with high accuracy and function of anti-leakage.

5) Parts contacting the product is made of SUS316L and the machine cover, made of SUS304, which is GMP compliant.

6) It’s convenient to use this card packing machine. Fold it and the card will be sheared off. Then squeeze the pack and the product will be extruded, for less residue and hence less waste.

8. Main technical specifications

The production capacity of the both types of the machines can multiplies by increasing the number of the filling heads, as well as the sealing and punching molds.

For more details, please contect me(click the photo up)
