In the pharmaceutical industry, capsule polishing machines are indispensable post-processing equipment in capsule filling production lines, used to remove dust and fine particles from capsule surfaces and improve product appearance quality. Selecting the appropriate capsule polishing machine is crucial for ensuring production efficiency, product quality, and GMP compliance. This article provides a comprehensive comparative analysis of vertical and horizontal capsule polishing machines from multiple dimensions including structural design, connectivity adaptability, functional configuration, and material selection, offering professional guidance for pharmaceutical companies when selecting polishing machines to pair with capsule filling machines.

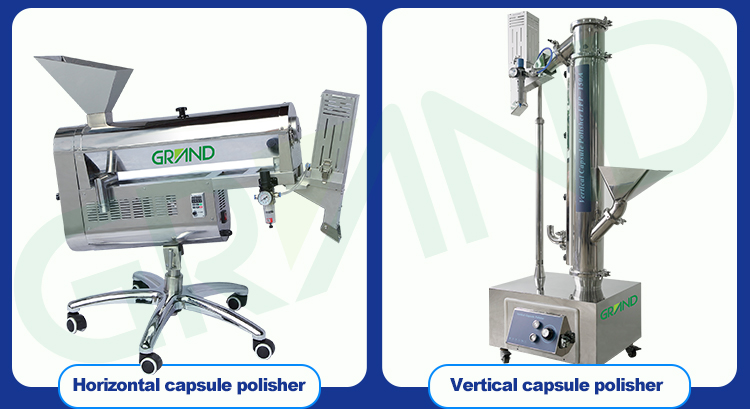

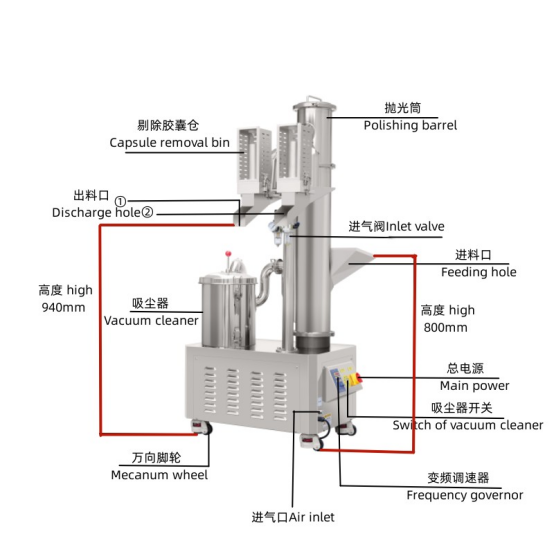

Vertical capsule polishing machines feature a vertically oriented design where capsules pass through the polishing area from top to bottom under gravity. Key characteristics include:
Compact structure: Small footprint, suitable for pharmaceutical workshops with limited space
Simple and reliable: Relatively simple mechanical structure with low failure rate
Gravity utilization: Uses capsule weight for downward movement, resulting in lower energy consumption

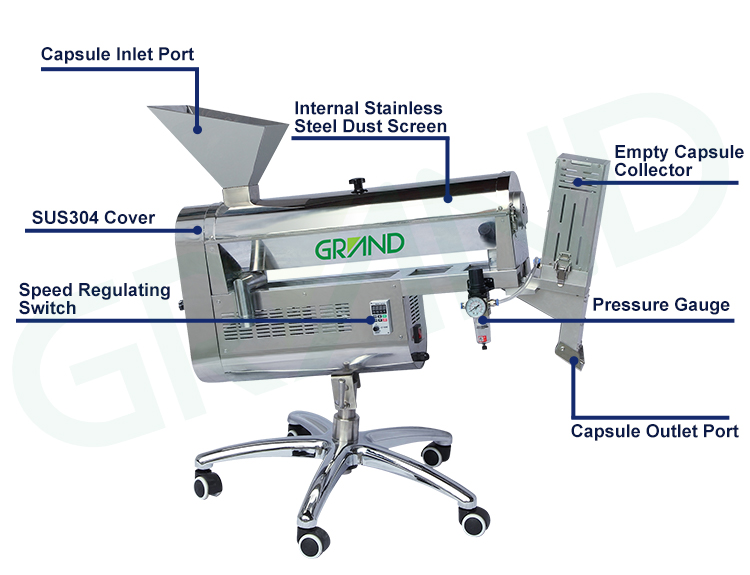

Horizontal capsule polishing machines employ a horizontally oriented design where capsules move through the polishing area horizontally via conveyor belts or screw propulsion. Key characteristics include:
High processing capacity: Suitable for high-volume production lines
Uniform polishing: Longer horizontal polishing path for capsules
High flexibility: Easier to connect with other horizontally arranged equipment
Vertical Polishing Machine:
More suitable as an independent unit
Appropriate for small-to-medium batch production or pilot lines
Relatively easier cleaning during product changeovers
Requires precise height matching when connecting to other equipment
Horizontal Polishing Machine:
Can operate as a standalone unit but doesn't fully utilize efficiency advantages
Better suited for large-volume single-product production
Relatively more complex cleaning, especially for internal conveying mechanisms
Horizontal Polishing Machine:
Can operate as a standalone unit but doesn't fully utilize efficiency advantages
Better suited for large-volume single-product production
Relatively more complex cleaning, especially for internal conveying mechanisms
Vertical Polishing Machine:
Basic models typically offer polishing and sorting function
Uses brushes or air flow to remove surface dust
Simple structure with easy maintenance
Horizontal Polishing Machine:
Basic models focus mainly on polishing
Vertical Combined Polishing-Sorting Machine:
Typically adds sorting module after polishing
Sorting often based on weight
Structure becomes relatively more complex
Suitable for applications with special sorting requirements

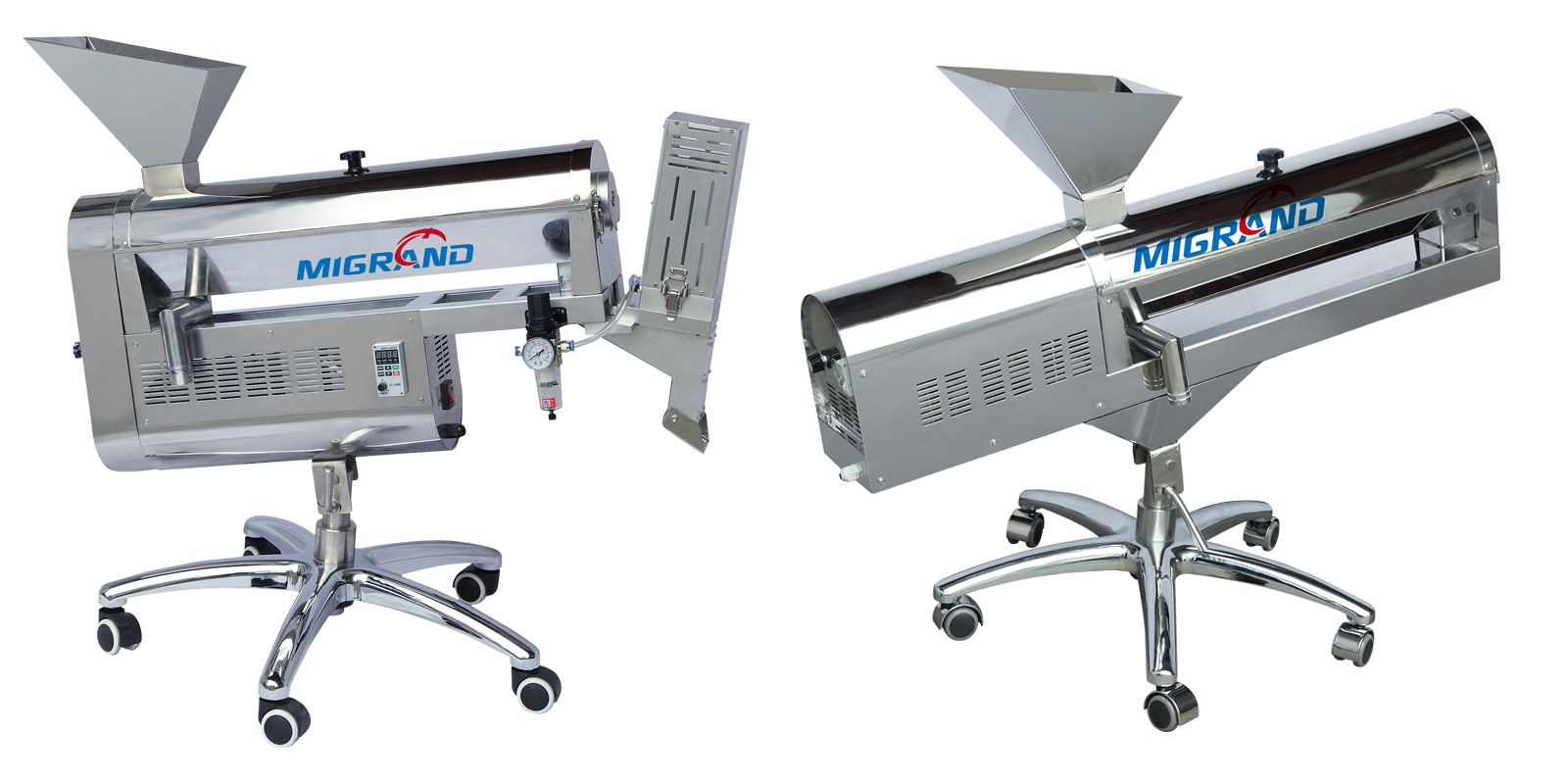

Horizontal Combined Polishing-Sorting Machine:
Modular design allows flexible configuration
Suitable for high-standard automated production lines
Function Selection Recommendations:
For basic polishing needs, both types can suffice
When integrated sorting is required, horizontal combined machines typically offer more advantages
Special sorting requirements (e.g., weight sorting) may require customized vertical models
Application Characteristics:
Good corrosion resistance
Lower cost
Meets general pharmaceutical requirements
Suitable for most oral solid dosage forms
Applicable Scenarios:
Non-highly corrosive environments
Budget-constrained projects
Conventional drug production
Application Characteristics:
Higher corrosion resistance
Particularly resistant to chloride corrosion
Smoother surface for easier cleaning
Complies with higher GMP standards
Applicable Scenarios:
High humidity or corrosive environments
Special formulations or highly active drugs
Production lines requiring international GMP certification
When long-term equipment durability is prioritized
Material Selection Recommendations:
For conventional oral solid dosage forms, 304 material is sufficient
For special environments or high-requirement products, choose 316 material
Parts in direct product contact should use at least 316 material
When budget allows, prioritize higher material standards
Select polishing machine capacity based on capsule filling machine's maximum output
Consider potential future capacity increases
Vertical models typically capacity (150,000-400,000 capsules/hour)
Horizontal models capacity (200,000-350,000 capsules/hour)
Confirm equipment supports all planned capsule sizes
Check ease of specification changeover
Vertical models typically allow quicker changeovers
Horizontal models may require more adjustments
Check for hard-to-clean dead spaces
Vertical models are typically easier to clean manually
Horizontal models may require more specialized cleaning procedures
Confirm compliance with latest GMP requirements
Check completeness of validation documentation
Evaluate data recording and traceability functions
Both types can meet basic GMP, but implementation differs
Initial investment cost: Horizontal typically lower than Vertical
Operating costs: Consider energy consumption, maintenance, consumables
Lifecycle cost: Include durability and upgrade potential
Connectivity costs: Include interface equipment and modification expenses
Requirements:
Capacity: 50,000 capsules/hour
Multi-product production
Limited space
Moderate budget
Recommended Solution:
Horizontal capsule polishing machine
304 main body with 316 contact parts
Basic polishing function
Reserve interface for future sorting module
Requirements:
Capacity: 350,000 capsules/hour
High automation requirements
Planning for international GMP certification
Long-term continuous operation
Recommended Solution:
Vertical capsule polishing machine
Full 316 stainless steel construction
Integrated sorting function
Complete connected automation design
Vertical and horizontal capsule polishing machines each have their advantages and suitable applications. Pharmaceutical companies should consider the following key factors when selecting:
Production Requirements: Including capacity, product variety, and connectivity needs
Space Layout: Existing or planned production line layout
Functional Requirements: Basic polishing or need for integrated functions
Compliance Standards: Required GMP level and certifications
Budget Constraints: Balance between initial investment and long-term operating costs

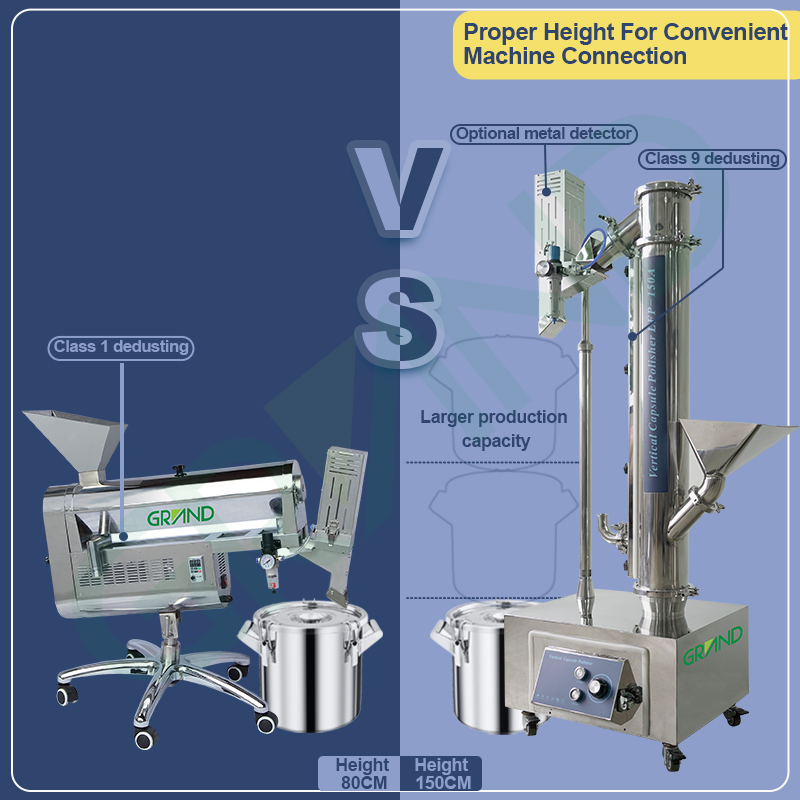

Generally, Generally speaking, the vertical capsule polisher is more popular because of its higher inlet and outlet height (easy to connect the front and rear end equipment), smaller footprint, better polishing quality and the vertical structure design which makes the brush more durable. The horizontal capsule polishing machine is chosen by many old buyers because of its lower price and longer use habits (longer time on the market). Material selection should be based on product characteristics and compliance requirements, with higher-grade materials recommended when budget allows to ensure long-term reliability and compliance.
Final selection decisions should be based on comprehensive needs analysis and compatibility assessment with existing or planned capsule filling machines. Hunan Grand Packing Machinery can be consulted for customized solutions when necessary.
