JFP-110A
GRAND PACKING
8422303090
Main Introduction:

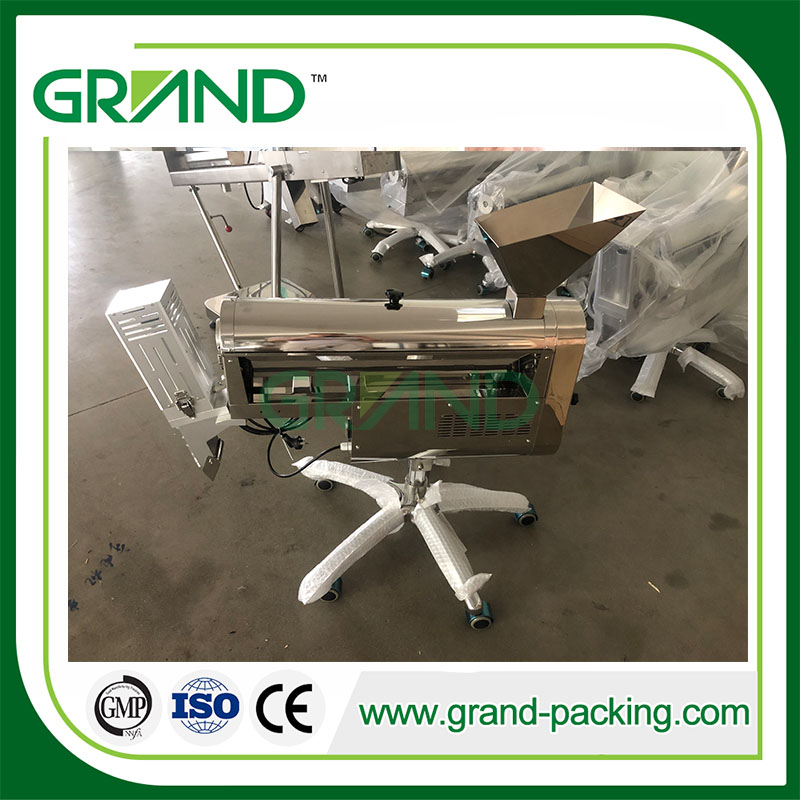

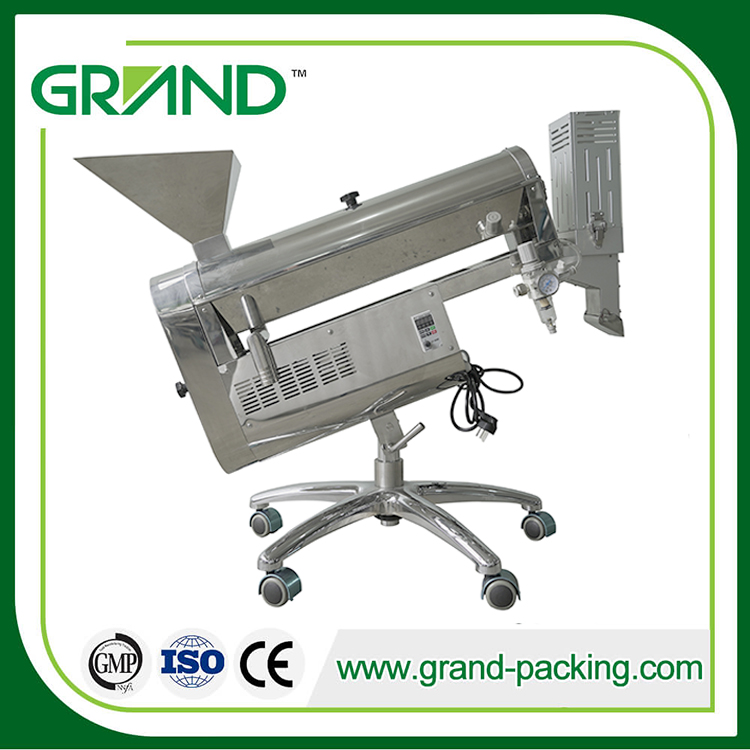

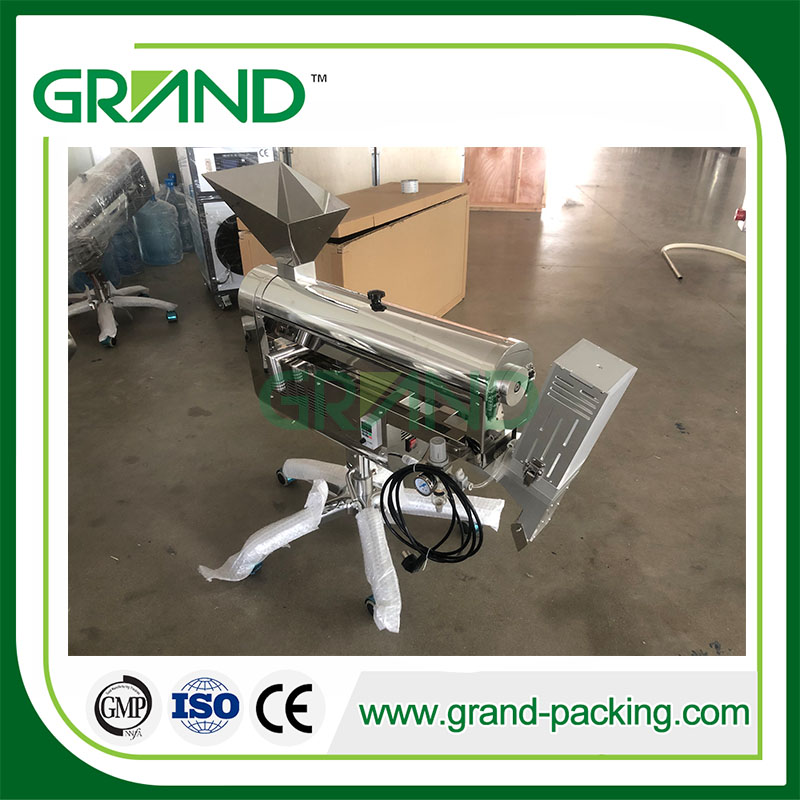

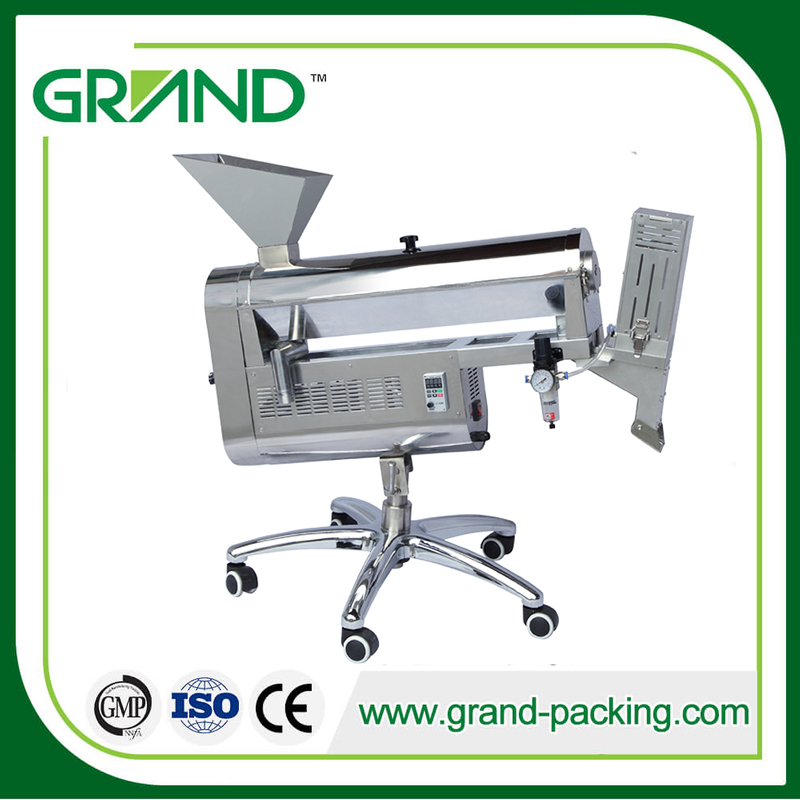

JFP-110A capsule polisher with sorting function is is an automatic polishing machine for capsule with sorter . It can not only remove the dust on the surface of the capsule to improve smoothness and eliminate static electricity, but also it can take advantage of neoteric waste rejecting device with negative pressure to automatically reject the capsule which has small filling volume, empty shell, fragment, and separation of capsule body and capsule cap. The machine is suitable for all types of capsules. All parts of this machine adopt fast connection devices, and they can be dismantled for cleaning and connected quickly, which is very convenient and quick. The machine adopts frequency converter to adjust the speed, making it more sensitive, reliable, and stable. Moreover, this machine can bear larger starting torque. The output power of the synchronous belt achieves its operation with lower noise. The dedicated product feeder is equipped to connect with the automatic filling machine for usage. The whole machine is made of 304 stainless steel, which fully meets with the GMP standard.
Technical parameter
Production capacity | 150000 Pcs/hr |
Power supply | 220V 50Hz, 2A, Single phase |
Gross weight | 69kg |
Net weight | 40Kg |
Negative pressure | 2.7m3/mn ---0.014mpa |
Compressed air | 0.25m3/min--- 0.3mpa |
Overall dimension (L*W*H) | 1150*550*800 (mm) |
Packing size (L*W*H) | 960*720*650 (mm) Ordinary packing |
| 960*620*850 (mm) Bubble packing |

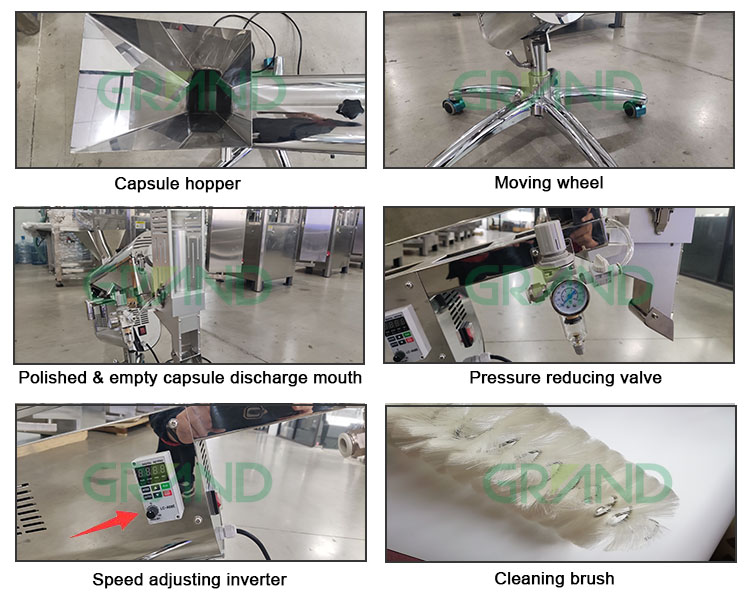

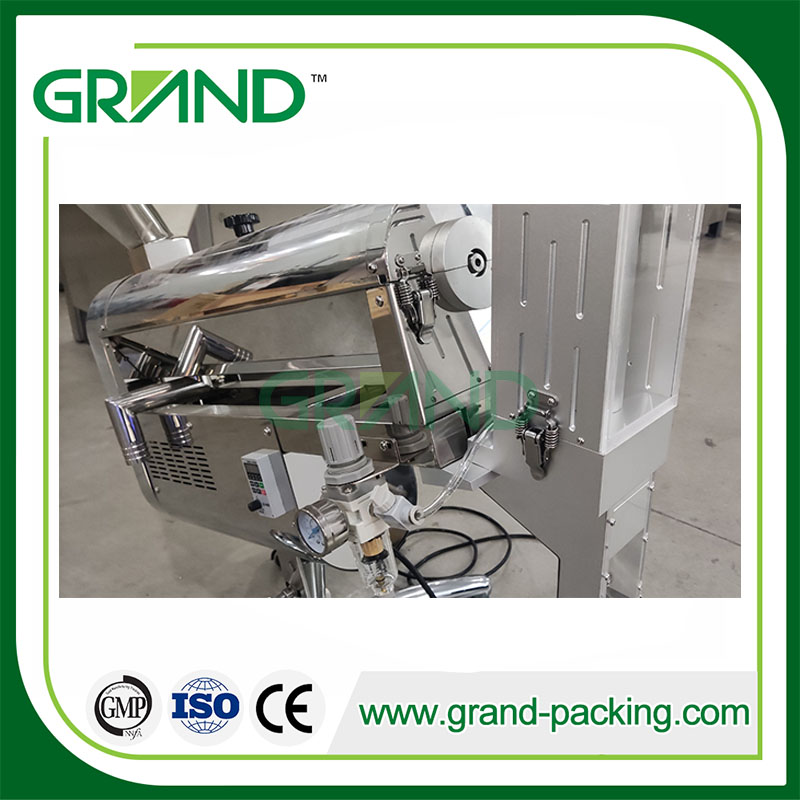

Detail machine view
ABOUT US
Hunan Grand Packing Machinery Co.,Ltd is specialized in the pharmaceutical and packing machinery for more than 10 years, such as plastic ampoule forming filling and sealing machine, capsule filling machine, blister packing machine, strip packaging machine, cartoning machine etc. We have provided services and machines to many different countries and regions in the whole world, such as Indonesia, Thailand, Malaysia, Philippines, New Zealand, Korea,the Middle East area, Poland, Belgium, France, UK, Greece, Italy, Turkey, USA, central and south America such as Trinidad and Tobago,Mexico, Brazil, Russia, Ukraine, UZ, Tunisia, Algeria, Morroco etc. And we always gain the good reputation from customer both from the machine quality and after sales service.
Our Service
1.We will dispatch engineers to your site for machine installation and commissioning, and also do the training for your technicians.
2.We makes guarantee of the machine for 12 (twelve) months. During this Warranty period, the seller will provide free spare parts that cause by the machine’s quality within 10 days by fast courier upon receipt of buyer’s notice.(we will also provide one set of spare parts /wear &tear parts to customer along with the shipment of the machine.
3.We warmly welcome the suggestions from customer to make us grow better and produce better machine along with providing better service to customer , and create more value for customer.
4.Before placing the order or before shipping, welcome to our factory to take a visit to inspect our machine. we will pick you up in the airport or train station and arrange your following schedule in our city to bring you a nice journey during this visit.
