Improvement of Power Mechanism for Capsule Filler

Views: 4     Author: Grand packing machinery     Publish Time: 2025-02-17      Origin: Hunan Grand Packing Machinery

Improvement of Power Mechanism for Filling

old model of semi automatic capsule filler power mechanism for fillling

Fig. 1  Old model

new model of semi automatic capsule filler power mechanism for fillling

Fig. 2 old power Mechanism

new model of semi automatic capsule filler power mechanism

Fig.3  New model


Old power mechanism

The old power mechanism is composed of three gears, namely driving gear, transiting gear and driven inner gear.

1) In order for the three gears best meshing state, their assembly and positioning accuracy are required to be extremely high.

2) During operation, the three gears rigid link transmission is too noisy.

3) The gear inside must be coated with grease which need to be replaced every half a year; even the temperature is slightly higher, the butter will penetrate when it melts.

4) The internal and external gears are connected by a transiting tooth, so the strength is unbalanced and the stability is poor.


New power mechanism

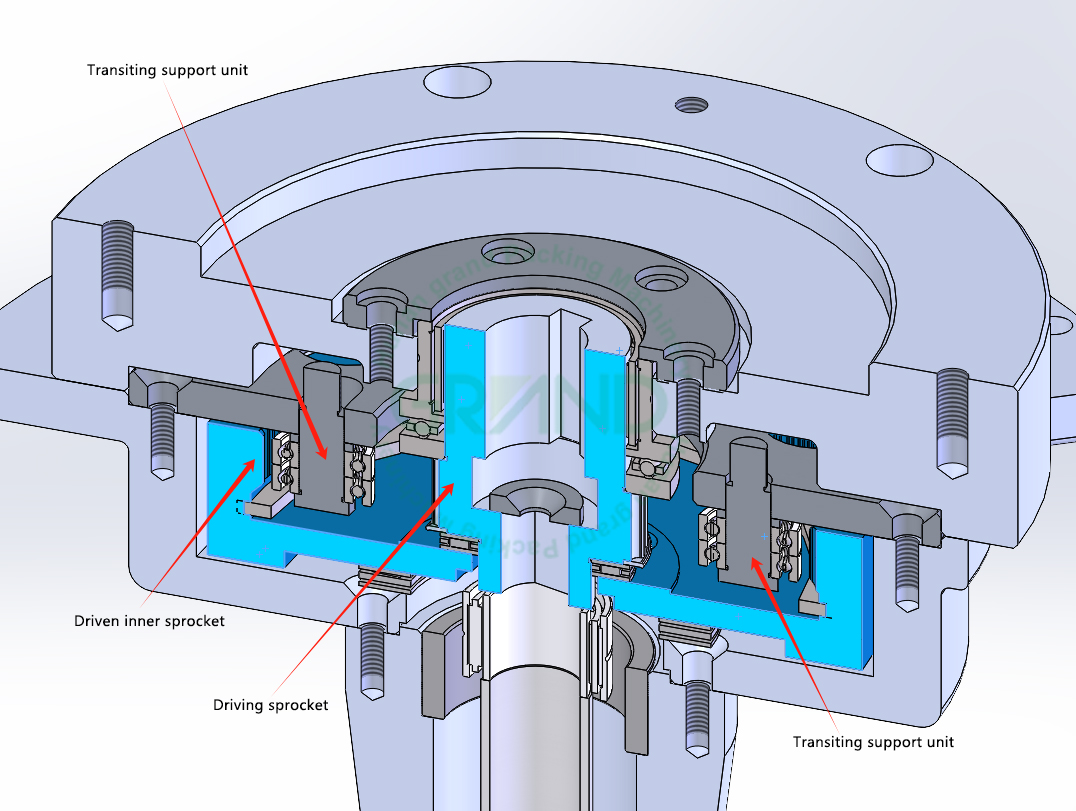

The new power mechanism is composed of driving sprocket, four sets of pressure wheels, timing belt, and driven inner sprocket.

1) The sprocket is made of high-strength aluminum with light weight and corrosion-resistant.

2) Through flexible transmission of the synchronous belt, the noise is reduced by 90%.

3) The timing belt adopts imported high-quality brand and without maintenance during normal use.

4) The internal and external gears are connected by four groups of pressure wheel mechanisms, so the contact area of the synchronous belt is large, the transmission efficiency is increased by 25%, and the operation is stable.


Do you want to know what performance improvements this upgrade has brought to the whole machine?


Please refer to product details<----Click me.
