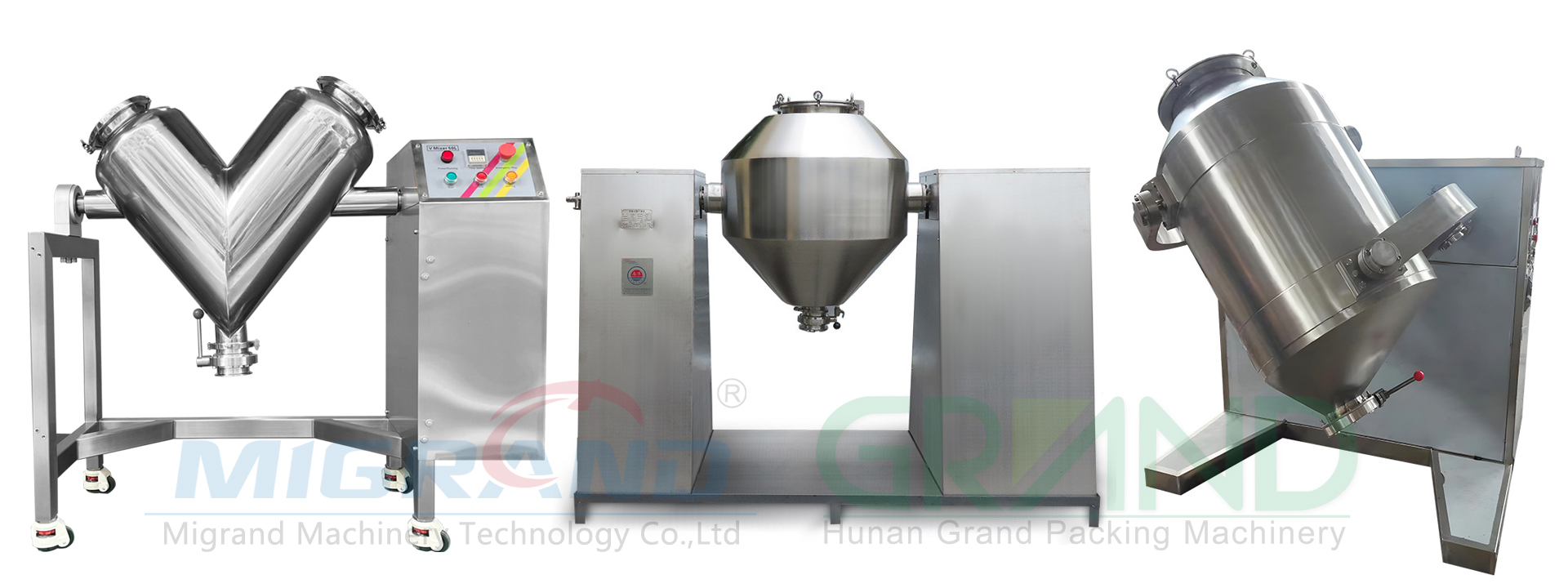

This is a highly professional question regarding equipment selection. V-mixers, 3D mixers, and double cone mixers are all commonly used for blending powdered/granular materials, each with its own advantages and disadvantages, suited for different process requirements.
Below is a detailed comparison based on your specified dimensions, followed by selection recommendations.
| Aspect | V-Mixer | 3D Mixer | Double Cone Mixer |
|---|---|---|---|
| Mixing Principle | Axial rotation of the V-shaped vessel, causing material to split and combine. | Complex 3D movement (translation, rotation, inversion). | Rotation around a horizontal axis; material lifts and slides in the conical vessel. |
| Mixing Effectiveness | Good. Strong convective and shear forces. Suitable for materials with average flowability. | Excellent. Dead-spot free. Ideal for high-precision, multi-component, differing densities, or slightly sticky materials. | Good. Primarily diffusion and convection. Best for free-flowing, similar-property materials. |
| Mixing Time | Relatively short (Typically 10-20 min) | Shortest (Typically 5-15 min) | Moderate (Typically 15-30 min) |
| Machine Lifespan / Bearing Wear | Moderate. Uniform main shaft force, but V-shape may have stress points. | Relatively Higher. Complex drive system, multi-directional movement. Highest wear risk on bearings and drive parts long-term. | Longest. Simple, robust structure, stable shaft force. Most durable with lowest bearing wear. |
| Energy Consumption | Moderate | Highest (Complex movement requires more power) | Lowest (Simple structure, low resistance) |
| Discharge Cleanliness | Good. Minor residue possible in V-corners. | Excellent. Can be configured with vacuum loading and full-discharge valves for minimal residue. | Good. Bottom discharge, but may have incomplete discharge for sticky materials. |
| Cost | Moderate | Highest | Lowest (for equivalent specs) |
| Typical Applications | Standard powder/granule mixing in Pharma, Food, Chemical. | High-end Pharma, Cosmetics, Food (e.g., API & excipient blending), Electronic Materials. | Chemical, Building Materials, Feed, Plastics - high-volume, less critical blending. |
1. Mixing Effectiveness
Winner: 3D Mixer. Its "multi-directional" motion ensures no dead spots, making it the undisputed best choice for blending 1% micro-components with 99% base materials, or handling materials with significant differences in density or particle size.
V-Mixer outperforms the Double Cone due to its asymmetrical V-shape, which creates stronger turbulence and shear, better handling materials with poorer flowability.
Double Cone Mixer provides gentler mixing, relying mainly on diffusion and convection. It works well for materials with very similar properties but can cause segregation with dissimilar materials.
2. Mixing Time
Winner: 3D Mixer. Its highly efficient and intense motion typically achieves high homogeneity within minutes, significantly reducing cycle time and boosting productivity.
V-Mixer comes in second.
Double Cone Mixer generally requires the longest time to achieve the same level of mixing uniformity.
3. Machine Lifespan & Bearing Wear
Winner: Double Cone Mixer. This is one of its core strengths. Its simple design—a symmetrical container rotating on a horizontal axis—results in even, stable force on the main shaft. Bearings endure steady radial loads, leading to minimal wear, low failure rates, and a very long operational life.
V-Mixer is intermediate. Its main shaft force is relatively stable, but the asymmetrical V-vessel creates a slight unbalanced moment, posing a slightly greater challenge to bearings than the double cone.
3D Mixer is the weakest here. Its complex drive system (active/passive shafts, universal joints, etc.) requires bearings to withstand varying loads and torques in multiple directions. Long-term, high-speed, multi-directional movement demands extremely high precision, materials, and heat treatment, resulting in the highest risk of wear and maintenance frequency.
4. Selection Advice by Volume (50L, 500L, 1000L)
General Principle: As volume increases, demands on mechanical strength, stability, and the power system rise. Simpler structures hold a significant advantage when scaling up.
50L (Lab / Small Batch Production)
3D Mixer: Highly Recommended. At this scale, its mechanical complexity is less of a drawback, while its high precision, dead-spot-free mixing, short time, and easy cleaning are major advantages. Ideal for R&D, pilot plants, and high-value product production.
V-Mixer: A cost-effective and practical choice for most routine lab work and small batches.
Double Cone Mixer: Less advantageous at 50L, unless for very simple materials with low blending precision requirements.
500L (Medium-Scale Production)
This is a critical capacity where all three types are widely used.
Double Cone Mixer: If your products are high-volume, low-value-added, and require only "good" mixing uniformity (e.g., certain chemical raw materials, feed premixes), the Double Cone is the most cost-effective and robust choice.
3D Mixer: If your products are high-end pharmaceuticals, valuable additives, etc., with stringent uniformity requirements, the 500L 3D mixer is still feasible and optimal, but expect higher acquisition and potential maintenance costs.
V-Mixer: A balanced compromise, offering a good mix of effectiveness and durability, suitable for standard processes in pharma and food industries.
1000L and Above (Large-Scale Production)
Double Cone Mixer: Becomes the dominant and preferred choice. The advantages of its simple structure are paramount at large scales: relatively easier manufacturing, controllable cost, stable operation, long bearing life, and low energy consumption. For large-scale continuous production, stability and lifespan are the top priorities.
3D Mixer: At the 1000L level, the mechanical structure becomes very complex and heavy, posing major design and manufacturing challenges, leading to extremely high prices and more difficult maintenance. It is generally not recommended unless there are exceptional and irreplaceable process requirements.
V-Mixer: Still applicable, but its market share is squeezed by the double cone. It serves as an alternative when better mixing than a double cone is needed, but a large 3D mixer is not justifiable.
Prioritize Ultimate Mixing Effectiveness for high-value, multi-component, or highly dissimilar materials, with ample budget?
Choose: 3D Mixer. Especially for small to medium capacities (50L - 500L). It is an "Performance-Oriented" machine.
Prioritize Equipment Durability, Low Downtime, Low Maintenance Cost, for large-scale, continuous production, where "good" mixing is sufficient?
Choose: Double Cone Mixer. Especially for medium to large capacities (500L and above). It is a "Productivity & Reliability-Oriented" machine.
Need a strong balance between Mixing Effectiveness, Equipment Cost, and Lifespan?
Choose: V-Mixer. It is a well-balanced, "Versatile" option suitable for a wide range from 50L to 1000L, widely used in pharmaceutical and food industries.
Final Strong Recommendation: Before finalizing your decision, if possible, conduct practical tests by providing your material samples to Grand packing machinery. Small-scale or pilot testing allows you to visually assess mixing results, measure mixing time, and check discharge behavior. This is the most reliable method for selection.
