DPP-180 Blister Packaging Machine Exported To Colombia

Views: 28 Author: Hunan Grand Packing Machine Publish Time: 2026-05-22 Origin: Hunan Grand Packing Machinery

Hunan Grand: DPP-180 Blister Packaging Machine – "One Machine, Dual Capabilities + Multi-Spec Adaptation" Empowers Global Pharmaceutical Enterprises to Reduce Costs and Increase Efficiency

1. Case Background: Accurately Addressing Dual Pain Points in Global Pharmaceutical Packaging

Against the backdrop of cost control and flexible production demands in the global pharmaceutical industry, enterprises face two core pain points:First, material adaptation limitations – to produce both aluminum-aluminum blisters (high barrier properties, suitable for oxidation-sensitive pharmaceuticals) and aluminum-plastic blisters (cost-effective, suitable for conventional pharmaceuticals), two dedicated machines are traditionally required.Second, cumbersome specification switching – relying on multiple machines for multi-specification pharmaceutical packaging leads to high investment, large floor space requirements, and rising labor costs.

As a seasoned enterprise in the pharmaceutical and packaging machinery industry, Hunan Dage has long identified this global common demand. Leveraging its technical expertise, the company has developed a comprehensive flexible production solution addressing both material compatibility and specification adjustment. In March 2026, a Colombian customer's blister packaging machine requirement – which included both aluminum-aluminum/aluminum-plastic dual-material production and 4-specification adaptation – fell perfectly within Hunan Grand's mature solution scope. The team promptly launched the project, with the DPP-180 equipment as the core, achieving "one machine solving multiple production needs."

2. Core Breakthrough: "Dual-Material Quick Switching + Multi-Spec Adaptation" for True "One Machine, Multiple Uses"

The "one machine, multiple uses" capability of the DPP-180 blister packaging machine is not a simple function overlay, but a comprehensive flexible production system built around two core dimensions – material adaptation and specification adjustment. It completely replaces the traditional "multiple dedicated machines" model, maximizing enterprise cost reduction.

2.1 Dual-Material Quick Switching: "One-Click Switch" Between Aluminum-Aluminum and Aluminum-Plastic Packaging

To meet the packaging protection needs of different pharmaceuticals, the equipment reserves a quick-switch function between aluminum-aluminum blisters and aluminum-plastic blisters. Flexible production of both material types can be achieved without large-scale modifications:

Switching Principle: Modular heat-sealing systems and film-running mechanisms are adopted. High-temperature, high-pressure heat-sealing components for aluminum-aluminum blisters and precision temperature-controlled components for aluminum-plastic blisters are independent modules connected to the main equipment via dedicated clips and standardized interfaces.
Switching Efficiency: Equipped with a dedicated material-switching tool kit, module replacement can be completed by two operators in just 20-30 minutes – far less than the hours required for "disassembly and modification" of traditional equipment.
Precision Guarantee: All production parameters (heat-sealing temperature, film speed, pressure, etc.) corresponding to the two materials are pre-set in the Siemens PLC system. After switching, parameters can be directly called without re-calibration. This ensures packaging tightness (aluminum-aluminum blister leakage rate ≤ 0.1%) and bonding strength (aluminum-plastic blister peel strength ≥ 30N/15mm) meet pharmaceutical industry standards.

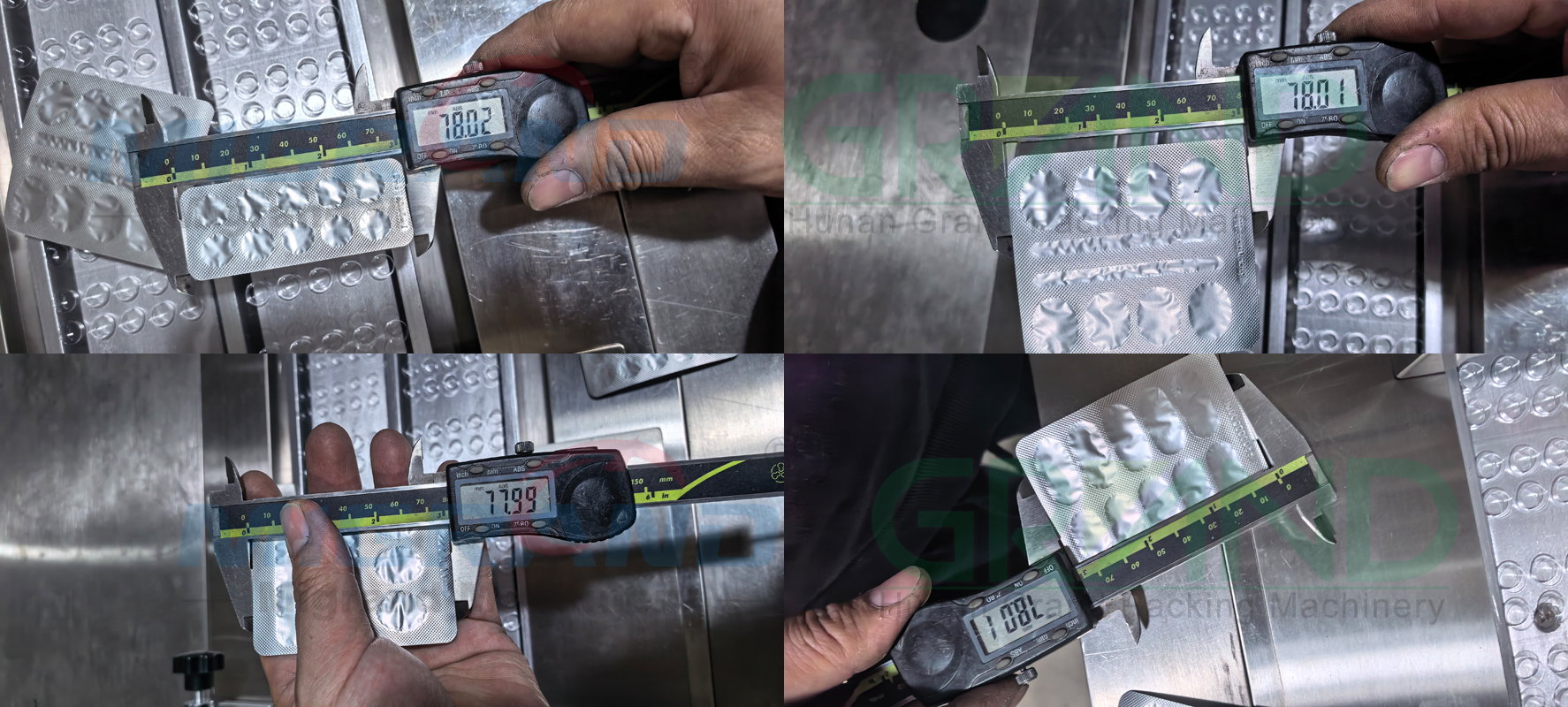

2.2 Multi-Specification Precision Adaptation: 4 Specifications Covering Full-Scenario Production

Combined with the Colombian customer's needs, the equipment simultaneously achieves flexible adaptation to 4 blister plate specifications, forming a "material + specification" dual flexible capability with the dual-material function:

Blister Plate Specification	Suitable Pharmaceutical Type	Switching Method	Switching Time
7×6mm (General Purpose)	Pharmaceuticals Capsules	Parameter call + no mold change	≤ 5 minutes
7×6mm (Customized)	Pharmaceuticals softgel & Medical Consumables	Replace forming/heat-sealing lower mold	≤ 30 minutes
7×7mm (Large Size)	High-dose pharmaceuticals softgel	Parameter adjustment + simple accessory replacement	≤ 15 minutes
7×3mm (Small Size)	Round tablet	Parameter call + film path adjustment	≤ 5 minutes

2.3 Cost Comparison: Cost Reduction Revolution of "One Machine, Dual Capabilities" vs. Traditional Solutions

Taking the Colombian customer's needs as an example, compared with the traditional solution of "2 material-dedicated machines + 4 specification-dedicated machines," the DPP-180 equipment offers significant comprehensive cost advantages, truly achieving "halved investment, doubled efficiency":

Cost Dimension	DPP-180 "One Machine, Dual Capabilities + Multi-Spec"	Traditional Solution (6 Dedicated Machines)	Cost Reduction Rate
Initial Purchase Cost	1 machine cost	6 machines cost (approximately 6-8 times the cost of a single machine)	80%-85% reduction
Workshop Space Cost	1 workstation (approximately 15㎡)	6 independent workstations (approximately 90㎡)	85% reduction
Labor Operation Cost	1-2 operators (handling both material/specification switching)	6 full-time operators (managing by material/specification)	75%-80% reduction
Maintenance Cost	1 set of spare parts + 1 maintenance system	6 sets of spare parts + 6 maintenance systems	Over 80% reduction
Energy Consumption Cost	Single machine energy consumption	Energy consumption of 6 machines operating simultaneously (approximately 5-6 times that of a single machine)	80%-85% reduction

3. Technical Support: Core Strength for Dual-Dimension Flexible Production

The stable realization of "dual-material + multi-specification" dual adaptation by the DPP-180 equipment is rooted in Hunan Grand's three major technical accumulations in the pharmaceutical packaging field, ensuring that flexible production does not compromise precision or efficiency.

3.1 Intelligent Control System: "Central Brain" for Dual-Dimension Switching

A high-end Siemens PLC + touchscreen control system is adopted to provide intelligent support for dual adaptation:

Parameter Memory and Call: The system can store a complete set of production parameters (heat-sealing temperature, film speed, pressure, etc.) for 2 materials and 4 specifications of aluminum-aluminum/aluminum-plastic. During switching, simply click the corresponding mode without re-calibration.
Material Adaptation Algorithm: For the high barrier requirements of aluminum-aluminum blisters, the system automatically optimizes the heat-sealing temperature curve (temperature fluctuation ≤ ±2℃); for the bonding requirements of aluminum-plastic blisters, it precisely controls pressure (pressure precision ≤ ±0.1MPa), ensuring stable packaging quality for different materials.
Real-Time Monitoring and Early Warning: The system real-time monitors key parameters such as material thickness and film tension. If deviations occur, it automatically adjusts and alarms, avoiding increased rejection rates caused by material/specification switching.

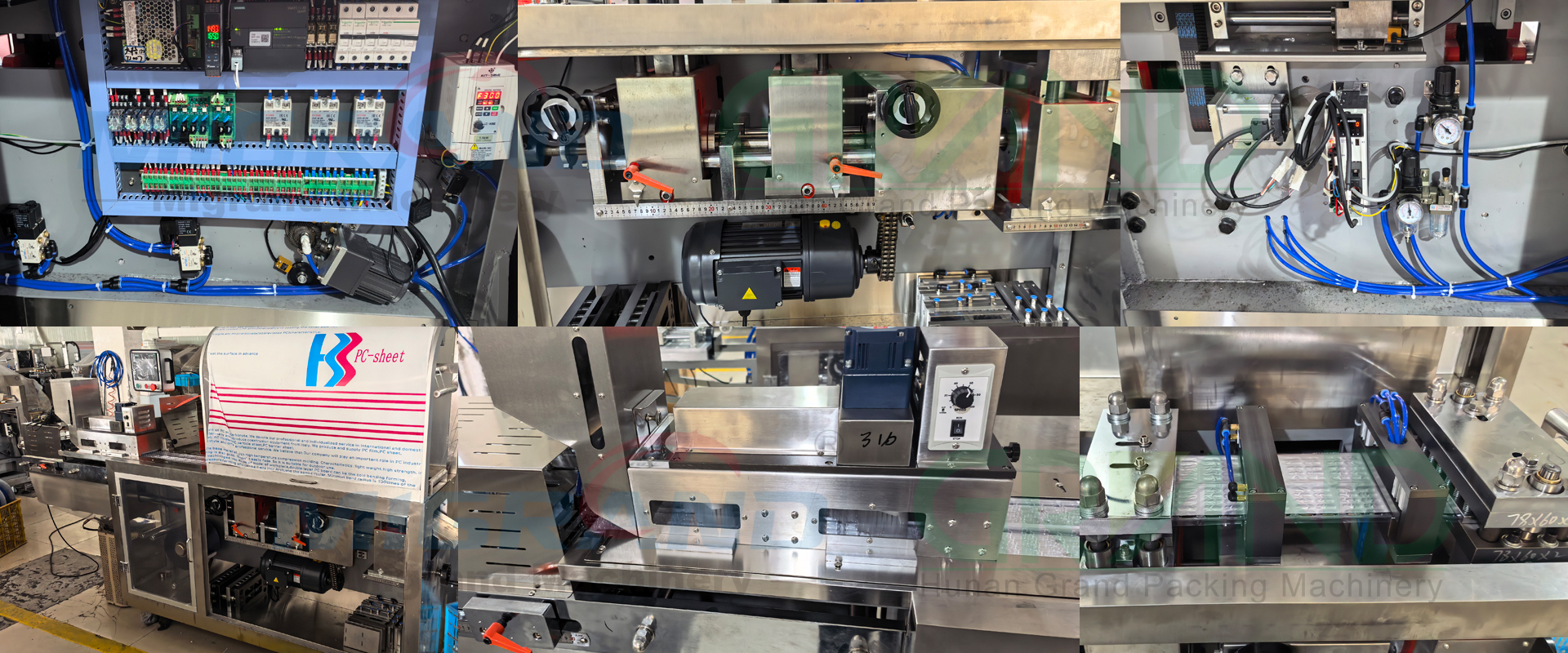

3.2 Modular Core Components: "Hardware Foundation" for Quick Switching

Key components of the equipment adopt a modular design to provide hardware guarantees for dual adaptation:

Heat-Sealing Module: Dedicated heat-sealing components for aluminum-aluminum/aluminum-plastic feature standardized interfaces. No complete machine disassembly is required during replacement; quick installation can be achieved via dedicated guide rails, with module positioning accuracy ≤ 0.05mm.
Mold System: Molds for the 4 specifications adopt a unified installation datum. During replacement, only the fixing bolts need to be loosened for disassembly. Locating pins are provided to ensure precise mold installation, avoiding packaging deviations caused by specification switching.
Film-Running Mechanism: Film-running rollers adapted to different materials (aluminum foil, plastic film) feature a quick-release design. No transmission system adjustment is required during replacement, ensuring stable film running.

3.3 Integrated Quality Inspection: "Quality Defense Line" for Dual Adaptation

A built-in online quality inspection system ensures that packaging of different materials and specifications meets standards:

For aluminum-plastic blister packs, a vision inspection camera is installed to automatically identify empty blisters, fragments, and similar defects, with automatic rejection of defective products (rejection accuracy ≥ 99.9%).
For aluminum-aluminum blister packs, a leak detection module is added (detection sensitivity ≤ 1 ml/min).

4. Project Execution: Efficient Implementation of the Dual Adaptation Solution

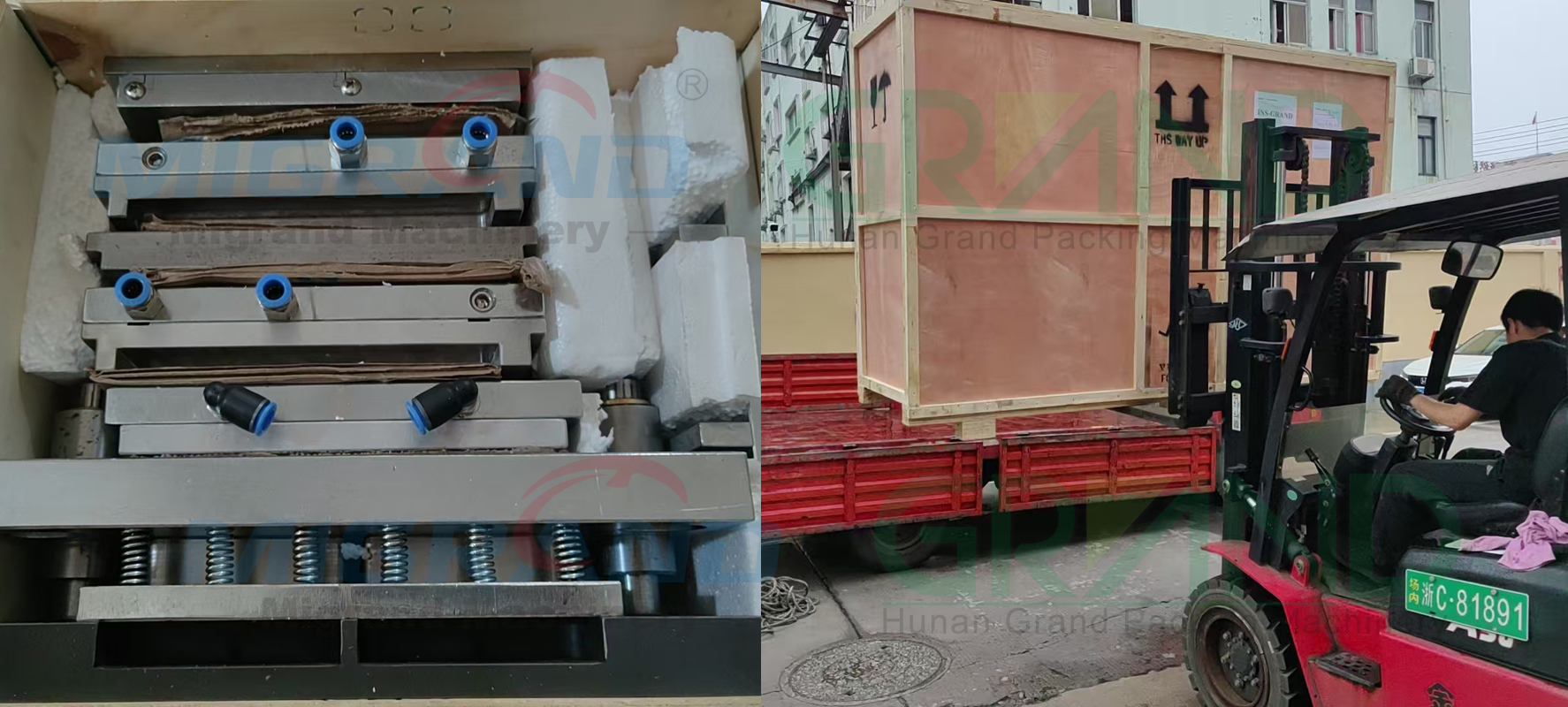

Relying on a mature project system, Hunan Grand not only achieves rapid delivery within 30 days but also ensures the "dual-material + multi-specification" functions are fully adapted to the customer's needs through full-process services, enabling the rapid realization of cost reduction advantages.

4.1 Customized Calibration: "Precision Alignment" for Dual Adaptation

Factory Pre-Calibration: Complete scenario-based production tests for 2 materials and 4 specifications are conducted in the factory. Optimal parameters for each mode are recorded, and a dedicated operation manual is created.
On-Site Training: Senior engineers are dispatched to provide on-site practical training on material switching (module replacement, parameter calling) and specification adjustment (mold replacement, parameter fine-tuning), ensuring customer operators master all functions independently.
Trial Production Support: During the customer's trial production period, engineers are stationed on-site for 1 week to optimize the switching process for actual production scenarios involving material/specification combinations (e.g., aluminum-plastic 78×60mm in the morning and aluminum-aluminum 78×32mm in the afternoon), reducing the switching interval to within 30 minutes.

4.2 Full-Cycle Services: "Long-Term Guarantee" for Dual Adaptation

Operation Guidance: Provide graphic manuals and video tutorials covering "material switching steps + specification adjustment processes + common problem solutions," marking production precautions for different materials/specifications.
Spare Parts Guarantee: Provide common spare parts for aluminum-aluminum/aluminum-plastic dedicated modules and molds of 4 specifications along with the equipment, supporting customers in stockpiling on demand to avoid production delays caused by missing accessories.
Upgrade Support: If the customer needs to add new materials (e.g., aluminum-plastic composite film) or specifications in the future, modular upgrade services can be provided to expand production capacity without replacing the entire machine.

5. Case Value: A New Benchmark for Flexible Production in Global Pharmaceutical Packaging

5.1 Core Value Created for Customers

Extreme Cost Optimization: Comprehensive cost reduction of over 80% across dimensions including procurement, space, labor, and maintenance. The investment payback period is shortened to 1/4 of that of traditional solutions.
Production Flexibility Upgrade: The same equipment can achieve "free switching between aluminum-aluminum/aluminum-plastic materials + flexible adjustment of 4 specifications," easily meeting the production needs of multi-category pharmaceuticals. Market response speed is increased by 3 times.
Stable and Controllable Quality: No compromise on packaging precision during dual adaptation. The qualification rate of packaging for different materials/specifications remains above 99.8%, meeting GMP production standards.

5.2 Significance for the Industry and Hunan Grand

Industry Value Leadership: Provide a new path for "flexible production and cost reduction" in the global pharmaceutical packaging industry, promoting the industry's transformation from "single-function equipment" to "multi-function integrated equipment."
Technical Strength Verification: The "dual-material + multi-specification" dual adaptation solution once again verifies Hunan Grand's technological R&D and integration capabilities in the pharmaceutical packaging machinery field.
Global Market Adaptation: This solution can be replicated for pharmaceutical enterprises in different regions such as Southeast Asia, Europe, and Africa, further expanding Hunan Grand's global market coverage.

6. Cooperation Outlook

In the future, Hunan Grand will continue to deepen the R&D of "flexible production" technologies. For the DPP series equipment, the company plans to add more material adaptations (e.g., aluminum-plastic composite films) and intelligent functions (e.g., AI parameter optimization, remote switching control). Meanwhile, relying on its international service network, Hunan Grand will promote the "one machine, dual capabilities + multi-specification adaptation" solution to more countries and regions, providing more efficient, economical, and flexible packaging equipment solutions for global pharmaceutical enterprises, and helping the industry achieve the dual goals of "cost reduction, efficiency increase, and flexible production."
