GDPP-420F
GRAND PACKING
8422303090
DPP-420D Fully Automatic Surprise Egg Making Machine is specially designed for making joy eggs and other surprise shapes. One machine could process from printed sheet roll feeding, inkjet date printer, heating, forming, chocolate depositing, ball biscuit feeding, manual loading toys, spoon auto sticker, printed film sealing, central cutting, double egg auto close, ultrasonic welding, full egg cutting, finished full egg conveying out. This machine has a high degree of automation, stable and reliable operation, less equipment investment, small required plant area, less workers requirement, energy saving, high economic efficiency.
Application：
It is suitable for blister packaging of Surprise egg, Joy eggs, Toy Chocolate Egg,Kinder egg, Dinosaur eggs, Biscuits chocolate eggs, etc.
Machine Features:
This machine is equipped with smart PLC and Touch Panel control, inverter speed control, servomotor feeding, fault display, auto alarm, quickly mold change, easy operation. Main components adopt domestic, Taiwan, Japan etc famous high-quality brands to ensure machine stable and reliable working.
Main function：
PP/HIPS/PLA/PET and other plastic blister products automatic forming,heat sealing,spraying,punching
Technical Specifications

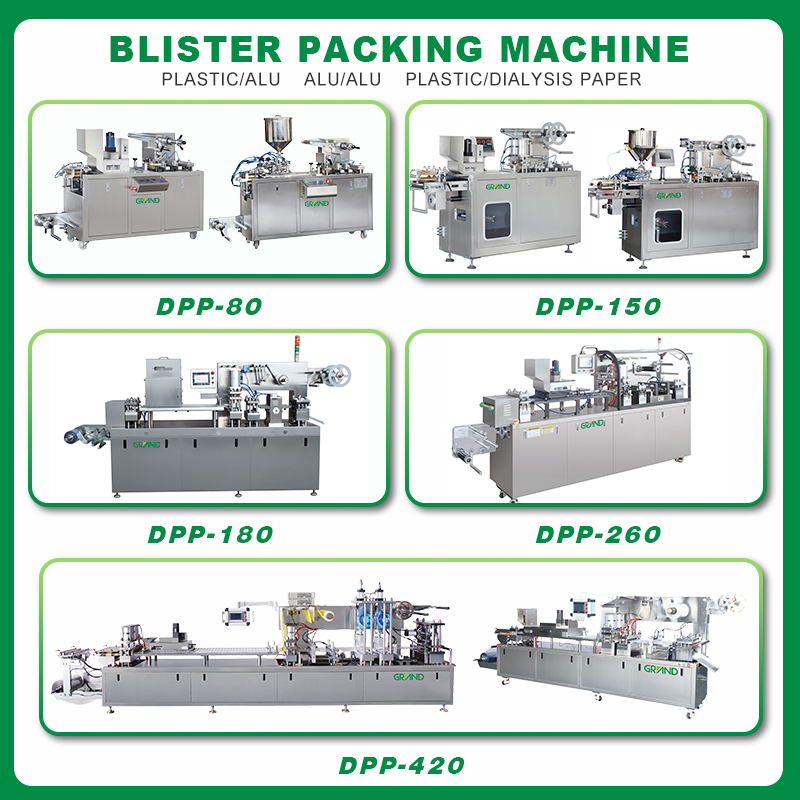

| Model | DPP-420S | DPP-420F(joy egg) | DPP-180 | DPP-260 |
| Punch frequency | 6-35 times/min | 10-25 times/min | 10-35 times/min | 10-40 times/min |
| Max. Forming Area | 400×180mm | 390×180mm | 175*110mm | 250*140mm |
| Max Forming Depth | 26mm or customized | |||
| Stroke range | 40-180mm | 40-180mm | 50-120mm | 40-140mm |
| Air pressure | 0.4-0.6MPa | |||
| Total power supply (can be customized) | 380V/220V 50Hz 9.7kw | 380V/220V 50Hz 22kw | 380V 50Hz, 3.8KW | 380V 50Hz, 8.5KW |
| PVC hard Film | 0.15-0.5×420mm | 0.15-0.5×420mm | ( 0.15-0.5)*180mm | (0.15-0.5*250mm |
| PTP Aluminum film | 0.02-0.035×420mm | 0.02-0.035×420mm | (0.02-0.035)*180mm | (0.02-0.035)*250mm |
| Dialysis Paper | 50-100g×420mm | 50-100g*180mm | 50-100g*250mm | |
| Mould cooling | Tap water or recycling water,Water chiller | |||
| Overall Dimension (L*W*H) | 4300×820×1600mm | 6000×950×2000mm | 2550*640*1600mm | 3250*710*1700mm |
| Machine Weight | 2000KG | 2500KG | 870KG | 1400KG |
Sample Display
Service 3: We will dispatch engineers to your site for machine installation and commissioning, and also do the training for your technicians.
Service 4: We makes guarantee of the machine for 12 (twelve) months. During this Warranty period, the seller will provide free spare parts that cause by the machine’s quality within 10 days by fast courier upon receipt of buyer’s notice.(we will also provide one set of spare parts /wear &tear parts to customer along with the shipment of the machine.
Service 5: We warmly welcome the suggestions from customer to make us grow better and produce better machine along with providing better service to customer, and create more value for customer.
Service 6: Before placing the order or before shipping, welcome to our factory to take a visit to inspect our machine. we will pick you up in the airport or train station and arrange your following schedule in our city to bring you a nice journey during this visit.
