Availability: | |
---|---|
Quantity: | |

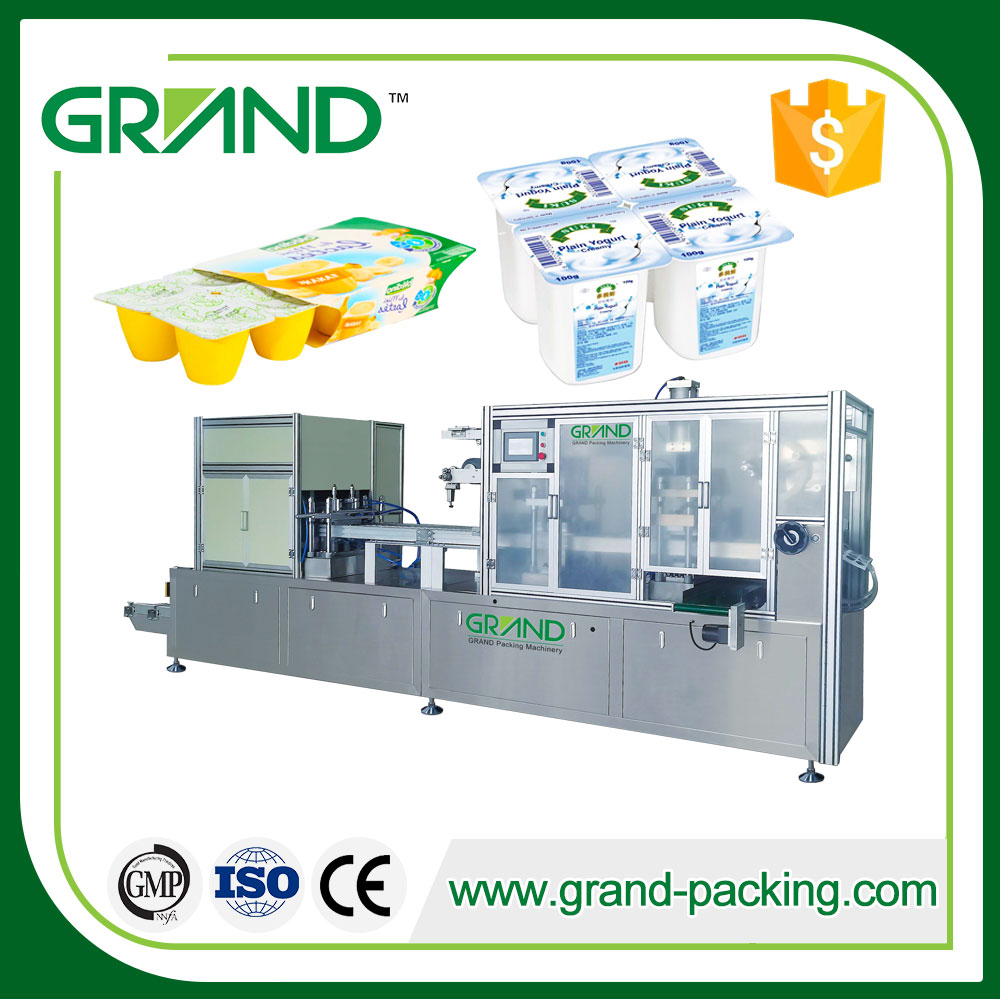

GDPP-350S
GRAND PACKING
8422303090
Application
It is suitable for blister packaging of food yogurt, cosmetics, contact lenses,pharmaceuticals, sauces, health products, etc.
Product introductions
This machine Meet the requirements of pasteurization by steaming at 62-65 ℃ for 30 minutes or 75-90 ℃ for 15 seconds, as well as low-temperature refrigeration, no deformation, no cracking.
Main function
PP/HIPS/PLA/PET and other plastic blister products automatic forming,heat sealing,spraying,punching
Product features:
1、Forming, heating sealing, batch marking, impression and cutting are with
Rack mandrel for exact and easy fixed position. it is equipped with ruler for easy correction and accuracy orientation.
2、Mechanical hand traction: it adopts double rod of pendulum device which can increase the stroke travel range (up to 180mm). it widely is suitable for all kinds of size packaging of blister. Plate heating, positive forming, upper and lower web plates, heating sealing , automatic feeding, automatic impression and embossing and automatic cutting are easy and reliable operation.
3、It has Positive pressure forming and mechanical punch for uniformity and perfect blister forming. It is applicable for packaging with larger size or special shaped of honey pill, big honey pills and etc. it is equipped with special automatic feeder for packaging of ampoule, syringes and injection vial. It is a machine with wide range of application for packaging.
4、The main drive shaft adopts parallel axis bevel gear reducer, forming, heating sealing, impression and etc. which of mould are adopting pill for tightly and accuracy position-setting, easier to change an save packing material.
5、The body of machine can be produced under the split production for easier moving into the working room.
Technical Specifications
Type | Specifications | Unit | |
Punches Frequency | 12-18 | times/min | |
Production capacity | based on product size | 5000-10000 pcs / hour | |
Adjustable travel range | 40~125 | mm | |
Maximum forming area | 240×350mm | mm | |
Maximum forming depth | 32-55 | mm | |
Standard plate size | 80×57 | mm | |
Total power | 2.4 | Kw | |
Power Supply | 380V 50HZ | V | |
volume flow | ≥0.11 | m3/min | |
cooling water | Tap water or recycle water | 60L/H | |
Overall dimension | 5220×150×1940 | mm | |
Overall weight | 3200 | kg |
Service 3: We will dispatch engineers to your site for machine installation and commissioning, and also do the training for your technicians.
Service 4: We makes guarantee of the machine for 12 (twelve) months. During this Warranty period, the seller will provide free spare parts that cause by the machine’s quality within 10 days by fast courier upon receipt of buyer’s notice.(we will also provide one set of spare parts /wear &tear parts to customer along with the shipment of the machine.
Service 5: We warmly welcome the suggestions from customer to make us grow better and produce better machine along with providing better service to customer, and create more value for customer.
Service 6: Before placing the order or before shipping, welcome to our factory to take a visit to inspect our machine. we will pick you up in the airport or train station and arrange your following schedule in our city to bring you a nice journey during this visit.
