CTS-1600
GRAND PACKING
8422303090
This is a Multi-Function Packaging Machine,It can be switched between Pouch Giving and Roll Film Make pouch. The maximum pouch size is 200mm * 250mm, and the maximum filling capacity is 1000ml. which is widely used for food, beverage, cosmetics, chemicals, Pesticide,pharmaceuticals packaging.
The packing material can be regular laminated film such as, PE/AL/PET; PE/NY/AL/PET; CPP/NY/AL/PET. This type of machine can make stand up pouch and then finish the packing process.The main packager can be integrated with various filling systems,suitable for all kinds of powder, liquid ,viscous liquid, granule, tablet , solid ,candy, stick product. Grand machines already served in Food, beverage, cosmetics, personal care, household, chemicals and pharmaceutical industry.
The working process is as following:

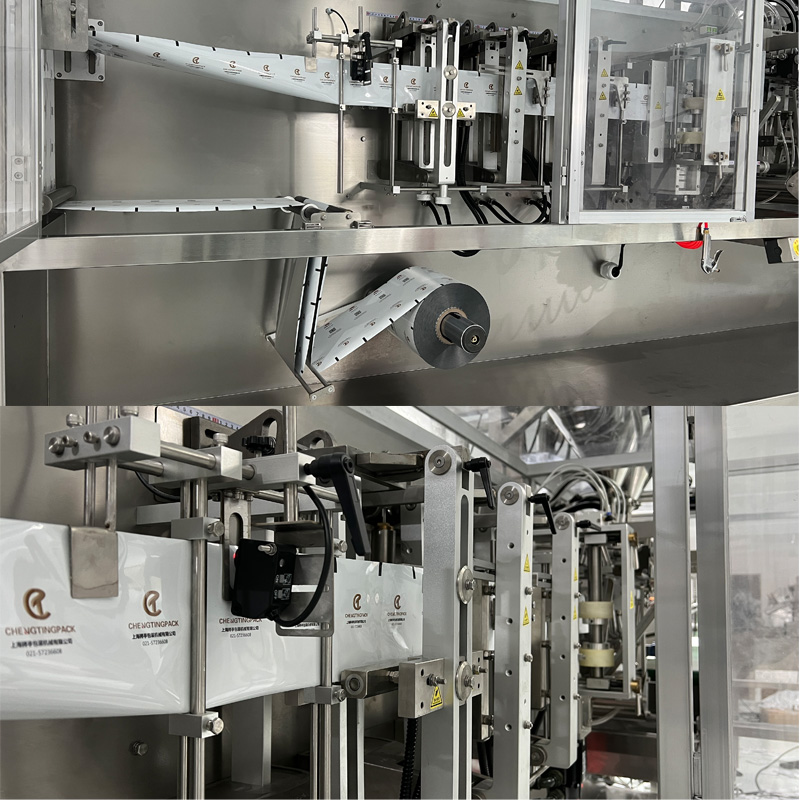

1、Packing film unwinding --sachet forming--product feeding and filling--sachet sealing--batch No embossing or printing--cutting and final product output.
2、Pouch Giving-product feeding and filling--sachet sealing--batch No embossing or printing--cutting and final product output.
We can customize the machine as per your requirement.
Light Walking Beam
1. Faster working speed
2. Longer operational life span
Servo Advance System
1. Easy computerized specification change
2. Stable pouch advance with less deviation
3. Big torquemoment of pouch advance, suitable for big volume
Dual Filling Station
1. Reduce filling time by half
2. Improved filling accuracy
3. Can filling 2 products simultaneously
Main technological parameter ：
| model | CTS-130 | CTS-180 | CTS-180T | CTS-1600 | CTS-2000/2600 |
| Min size(mm) | 60*75 | 50*80 | 50*80 | 80*120 | 60*100 |
| Max size(mm) | 140*180 | 180*225 | 90*180 | 180*250 | 200*250 |
| Packaging capacity range | 160ml | 400ml | 100ml | 500CC | 100-1000ml |
| Packaging speed | 40- 80ppm | 40-80ppm | 100-160ppm | 50ppm | 60-120ppm |
| power | 4.5Kw | 4.5kw | 4.5kw | 6kw | 8kw |
| oxygen consumption | 300NL/Min | 200 NL/min | 200 NL/min | 80L/min 0.6Mpa | 120L/min 0.6Mpa |
| Equipment size | 2850*940*1450 | 3500*970*1500 | 3500*970*1500 | 5500*970*1390 | 6600*1100*2800 |
| weight | 800Kg | 1160kg | 1160kg | 2000kg | 3000kg |
| function | Roll film make pouch（3/4 side seal,Flat/Twin-link/spout） | Pouch giving/Roll film make pouch doypack/spout doypack/zipper doypack/Special-shaped doypack | |||
Service 3: We will dispatch engineers to your site for machine installation and commissioning, and also do the training for your technicians.
Service 4: We makes guarantee of the machine for 12 (twelve) months. During this Warranty period, the seller will provide free spare parts that cause by the machine’s quality within 10 days by fast courier upon receipt of buyer’s notice.(we will also provide one set of spare parts /wear &tear parts to customer along with the shipment of the machine.
Service 5: We warmly welcome the suggestions from customer to make us grow better and produce better machine along with providing better service to customer, and create more value for customer.
Service 6: Before placing the order or before shipping, welcome to our factory to take a visit to inspect our machine. we will pick you up in the airport or train station and arrange your following schedule in our city to bring you a nice journey during this visit.
ABOUT US
Hunan Grand Packing Machinery Co.,Ltd is specialized in the pharmaceutical and packing machinery for more than 10 years, such as plastic ampoule forming filling and sealing machine, capsule filling machine, blister packing machine, strip packaging machine, cartoning machine etc. We have provided services and machines to many different countries and regions in the whole world, such as Indonesia, Thailand, Malaysia, Philippines, New Zealand, Korea,the Middle East area, Poland, Belgium, France, UK, Greece, Italy, Turkey, USA, central and south America such as Trinidad and Tobago,Mexico, Brazil, Russia, Ukraine, UZ, Tunisia, Algeria, Morroco etc. And we always gain the good reputation from customer both from the machine quality and after sales service.
customer visit at our factory and our visit to customer

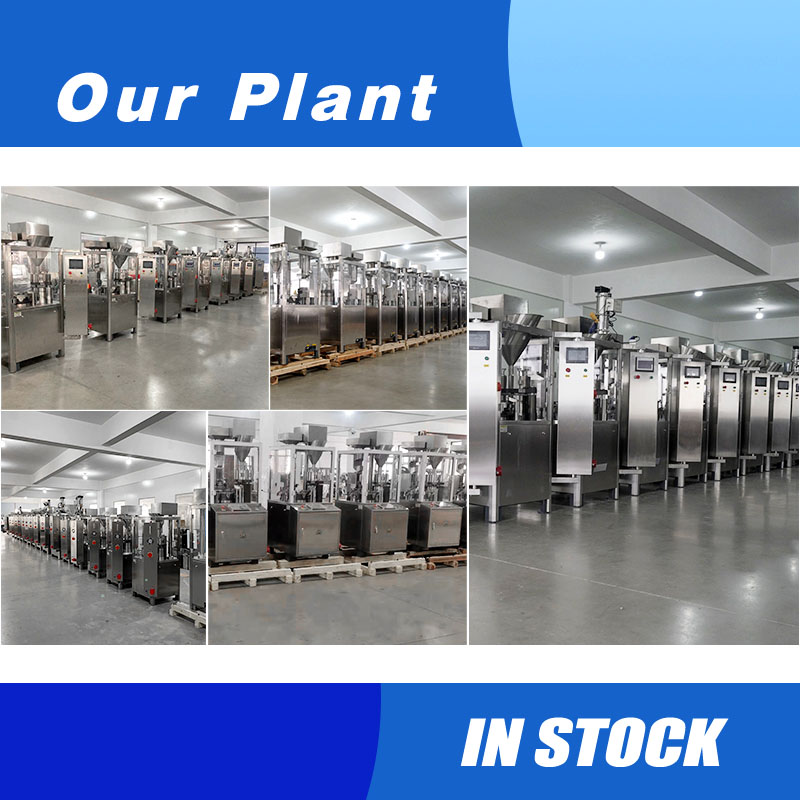

Our factory
We are cooperating with various kinds of factories and companies in different fields, including pharmaceutical factory, food factory, supplement factory, agrochemical factory such as for pesticide, fertilizer, personal care product factory, such as for cosmetic product, daily use product, stationery factory, hardware factory etc.
