From Capsule Filling & Packaging Line to Syrup Cartoning & Labeling Line Integration Solution – One-Stop Delivery of 9 Main Machines and Auxiliary Equipment
BL is a Malaysian pharmaceutical company specializing in the R&D and production of plant-based capsule preparations. In June 2026, after multiple rounds of technical discussions and supplier evaluations, the company finalized a purchase order with us for two complete pharmaceutical packaging production lines covering capsule filling, polishing/sorting, blister packaging, syrup bottle cartoning, labeling, checkweighing, and other processes – totaling 9 main machines and auxiliary line equipment.
This article focuses on the cartoning machine and labeling machine; the capsule line will be covered in a separate article. All equipment was custom-configured to Malaysia's local power standards (single-phase 220V/50Hz, UK-type G plug) and English-language operation interfaces. Upon arrival at the factory, the equipment is plug-and-play ready, requiring no customer-side modifications.
1. Vertical Cartoning Machine GDC-50 – The Core for Multi-Specification Flexible Production

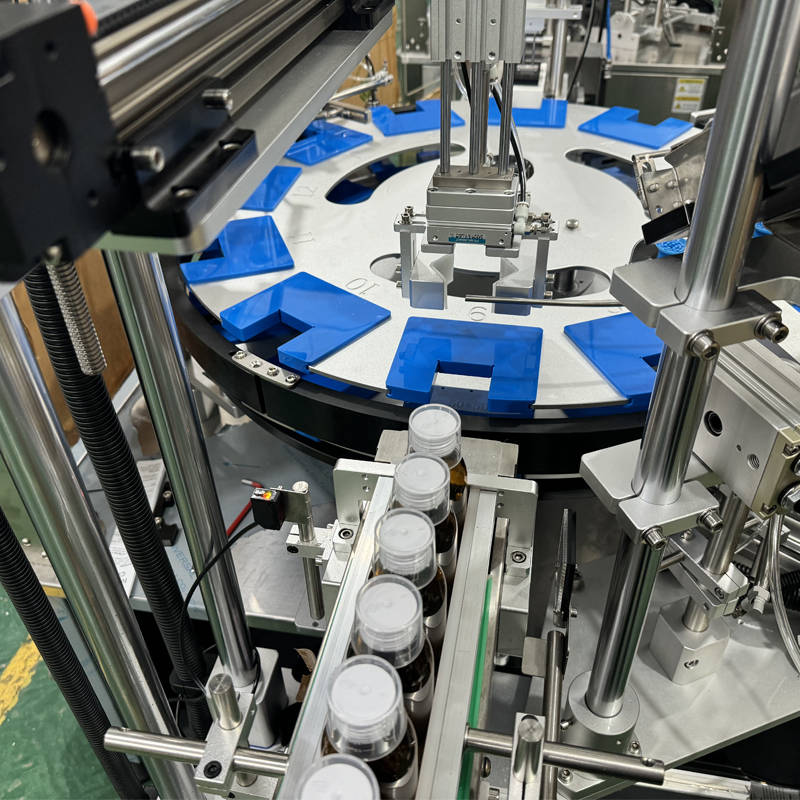

The GDC-50 vertical cartoning machine (also referred to in some applications as a rotary cartoner or top-opening cartoner) was selected for this project, specifically designed for automatic cartoning of bottled pharmaceuticals. The unit features a 600mm-diameter infeed turntable that can accommodate approximately 60 round bottles with a diameter of 64mm, achieving a stable operating speed of 30–32 cartons per minute.
Technical Highlights:
Supports rapid changeover between 5 different carton sizes (A, B, C, D, E – dimensions withheld for customer confidentiality), equipped with 5 sets of change parts – one machine covers the customer's current and future product line expansion needs.
Tuck-style closure (top and bottom) provides firm and aesthetically pleasing sealing, meeting pharmaceutical packaging tamper-evident requirements.
Integrated leaflet folding and insertion mechanism automatically folds and inserts leaflets, satisfying pharmaceutical packaging compliance requirements.
Equipped with a Videojet VJ1280 inkjet printer for printing production batch numbers, expiry dates, and other traceability information directly onto cartons.
Compatible with 3 bottle diameter specifications (F, G, H – dimensions withheld for customer confidentiality), with simple changeover operations.
For procurement decision-makers who frequently search "where to buy cartoning machines with the best value for money," the GDC-50 strikes an excellent balance between multi-specification compatibility, stable output, equipment price, and compact footprint – one machine covers 5 carton types, essentially using a single investment to support product line expansion needs for the next 3–5 years, avoiding duplicate procurement.
2. Top & Bottom Flap Corner Labeling Machine – Precision Solution for Dual-Side Anti-Counterfeit Labeling
Directly connected in-line with the cartoning machine, the automatic top & bottom flap corner labeling machine is another major technical highlight of this project. The equipment employs servo-driven systems to apply corner labels at the top and bottom flaps of cartons, at a speed of approximately 40 cartons per minute. This dual-side labeling solution is gaining increasing popularity in the Southeast Asian pharmaceutical market – one corner label on each of the top and bottom flaps serves both anti-counterfeit/tamper-evident purposes while avoiding the visual obstruction of full-face seals that can detract from carton graphic presentation.
Technical Highlights:
Equipped with two Panasonic servo labeling heads (Japan), delivering high precision, stable operation, and accurate label positioning.
Compatible with A mm diameter clear self-adhesive labels, which become nearly invisible after application, preserving carton graphic design and brand presentation.
Upside-down labeling process – cartons are laid on their side for top and bottom flap corner labeling, ensuring labels adhere tightly at the flap creases without lifting or bubbling.
Inkjet printer integrated onto the labeling machine conveyor, combining labeling and coding in a single streamlined process, reducing intermediate handling.
Key sensors include KEYENCE (Japan) for product detection and LEUZE (Germany) for label detection; the control system features Siemens PLC and HMI, Schneider Electric low-voltage components (France), and Delta inverters (Taiwan) – all core components from globally recognized Tier 1 brands.
The cartoning machine and labeling machine are seamlessly connected via a 745mm-high interconnecting conveyor. Products exit the cartoner and enter the labeling process directly, eliminating manual handling and significantly reducing labor costs and product contamination risks.
3. SG-150 Checkweigher – In-Line Inspection Stage (Additional Functionality & Technical Highlights)
Line Position: Connected downstream of the labeling machine, performing in-line weight inspection on finished cartons after cartoning and labeling.
Equipment Function
In the syrup bottle cartoning and labeling line, the SG-150 checkweigher serves as the final in-line quality control gate. It weighs each finished carton in real time to detect defects such as missing items, extra items, missing leaflets, or missing syrup bottles. Rejected products are automatically ejected, preventing non-conforming goods from entering storage or export shipping, ensuring 100% qualified finished cartons are delivered to the customer.
Technical Highlights:
High-resolution weighing capability: Captures small weight differences to identify missing bottles, missing leaflets, missing accessories, and other minor weight variations online, with automatic rejection – eliminating manual sampling inspections and reducing labor costs.
Seamless line integration: The unit interfaces directly with the labeling machine outlet, perfectly matching the line's 745mm conveyor height. Finished cartons transfer without any drop-off, requiring no manual handling, achieving a fully automated cartoning → labeling → checkweighing → rejection production line.
English-language HMI: The touchscreen supports English operation, suitable for Malaysian local operators; multiple product recipes can be stored, allowing quick changeover by recalling preset parameters when switching between different carton sizes.
Production data traceability: Records counts of pass and fail products, along with rejection cause statistics, facilitating factory production process analysis.
Export-ready configuration: Single-phase 220V-50Hz power supply adapted for Malaysia, complete export documentation, full in-factory commissioning and operational testing prior to shipment, with complete machine photo and video documentation as part of the process.
BL's procurement list included, in addition to core pharmaceutical equipment like the cartoning machine, labeling machine, and checkweigher, other equipment such as a capsule filling machine, capsule sorting/polishing machine, blister packaging machine, chiller, industrial vacuum cleaner, and other auxiliary units. The customer chose to complete the entire line procurement from a single supplier primarily because of our unique "Factory + Integrator" dual-entity service model.
Migrand Machinery – Professional Filling & Pharmaceutical Equipment Manufacturing Factory
Migrand is a specialized manufacturing facility with deep expertise in pharmaceutical liquid filling equipment, as well as core technologies in capsule fillers and blister packaging machines. All equipment undergoes rigorous no-load and load testing before shipment, with key performance indicators (such as capsule separation rate, filling accuracy, and blister seal integrity) quantifiably verified – ensuring every machine arrives at the customer's site in optimal operating condition.
Hunan Grand – Production Line System Integration Service Trader
Hunan Grand Packing Machinery is a trading company focused on production line system integration services. Its core value lies not in simply selling machines, but in delivering "near-turnkey" complete line solutions to customers:
Equipment selection and line layout design: Based on the customer's product specifications, capacity requirements, and plant layout, we select the most suitable individual machines from various manufacturers and design the integrated line configuration. In this project, the connection height of the cartoning machine, labeling machine, and checkweigher/rejection system was precisely set at 745mm, with product flow from left to right and signal coordination between upstream and downstream equipment to ensure seamless multi-machine integration.
Control system integration: Consolidates equipment from different brands and with different communication protocols under a unified operating logic, reducing the customer's debugging effort and coordination costs across multiple machines.
Near-turnkey completion at lower procurement cost: Traditional turnkey projects are often subcontracted through multiple layers by a general engineering contractor, resulting in high costs and lengthy communication chains. Hunan Grand's model directly interfaces with each equipment factory, taking on integration and coordination responsibilities as a trading partner. The final delivered production line achieves a level of completion close to turnkey, but at a significantly lower overall procurement cost, with more direct and flexible service response.
For procurement teams comparing "where to buy the best packaging production lines," the advantages of this model are clear: the cartoning machine itself is manufactured by a specialized factory (quality assured, pricing transparent), while line compatibility, integration commissioning, and ongoing support are centrally managed by the integrator (eliminating the need to coordinate among multiple suppliers). The customer works with a single point of contact for all line-related matters.
Pre-Sales: Meticulous Technical Confirmation
From initial contact to final order placement, this project underwent a detailed technical confirmation process. We provided the customer with a comprehensive technical confirmation document covering dozens of technical parameters for each machine – power requirements, product specifications, change part configurations, performance parameters, safety features, and more. The customer reviewed and signed off item by item. This approach ensured that equipment would require no major modifications upon arrival and could be put into production immediately, while also preventing delivery disputes caused by technical misunderstandings.
In-Process: Transparent Production Tracking
After order placement, we issued detailed production work orders to the manufacturing factory, specifying model numbers, technical specifications, delivery dates (30-day lead time for this project), electrical configuration requirements, and random spare parts lists. Upon completion of commissioning and prior to shipment, we captured full operational videos, photos of each station, electrical cabinet photos, and finished product sample photos – all sent to the customer for confirmation. This allowed the customer to "see" their equipment running before it was even containerized, providing peace of mind.
After-Sales: Ongoing Support from Installation to Spare Parts Supply
Equipment ships with random wear parts (fuses, green round belts, special tools, etc.) to ensure the customer does not experience downtime due to small component shortages during initial operations.
Remote technical support is available, with video-guided assistance for equipment installation, parameter commissioning, and routine maintenance – reducing the cost of on-site service visits overseas.
Key electrical components are all from internationally recognized brands (Siemens, Panasonic, KEYENCE, LEUZE, Schneider, etc.), allowing the customer to source replacements locally in Malaysia, reducing reliance on original spare parts and minimizing downtime.
All equipment HMIs are in English with clear operating logic, requiring no additional language training for customer operators.
For overseas customers, procurement challenges often lie not in the equipment itself, but in cross-border shipping and customs clearance. We have accumulated extensive export service experience in this area, standardizing every detail:
Packaging standards: Equipment is wrapped with stretch film and packed in custom wooden crates, with fumigation numbers and shipping marks clearly indicated – compliant with Malaysian import quarantine requirements to avoid detention at the destination port due to packaging issues.
Container loading monitoring: Full photo documentation of loading and container stuffing, including photos of sealed locks, ensures traceability throughout the shipping process and enables rapid liability determination in case of damage.
Customs documentation: Complete commercial invoices, packing lists, certificates of origin, and other clearance documents are provided. Equipment model numbers, HS codes, technical specifications, and other declaration details are accurate and standardized, minimizing clearance delays.
Plug & power adaptation: All equipment is fitted with UK-type G plugs and single-phase 220V/50Hz power per Malaysian standards – plug-and-play upon arrival, with no electrical modifications required by the customer.
Many customers ask "where to buy cartoning machines with the best service." Our answer: service quality depends on whether the supplier truly understands every detail of the export process – from wooden crate fumigation to marking specifications, from HS code classification to destination port clearance. Errors in any link can result in equipment detention at port and additional costs. Our export service team has standardized these details comprehensively, enabling customers to place orders with true peace of mind.
Malaysia is a key service region for us in Southeast Asia. We have served numerous Malaysian customers across pharmaceuticals, nutraceuticals, food, and other industries. We have in-depth knowledge of Malaysia's power standards, plug types, GMP compliance requirements, and import clearance procedures, enabling us to provide equipment solutions tailored to the local market.
Additionally, we regularly participate in industry exhibitions in Southeast Asian countries such as Indonesia, maintaining close connections with local customers and agents. This sustained market engagement allows us to stay abreast of evolving customer needs and industry trends in the region, while continuously refining our equipment solutions to better suit local production environments.
BL's pharmaceutical packaging production line represents a typical case of our "specialized factory manufacturing + system integration services" model. What the customer received was not only 9 high-quality individual machines, but a complete solution covering selection, line integration, commissioning, export logistics, and after-sales support – equipment quality backed by Mige Machinery, line integration coordinated by Hunan Grand, export clearance managed by our experienced team, and after-sales support delivered through a single point of contact.
