1. Application

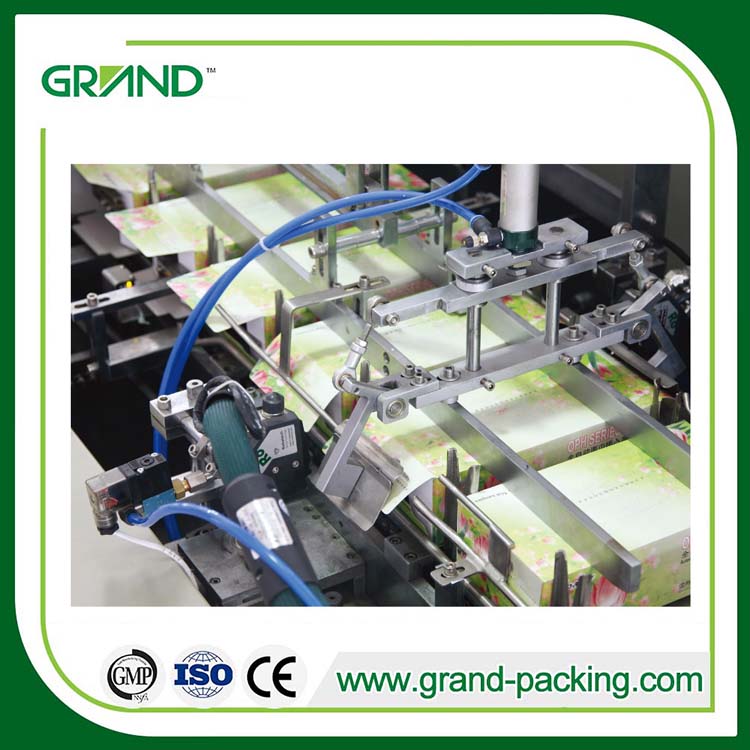

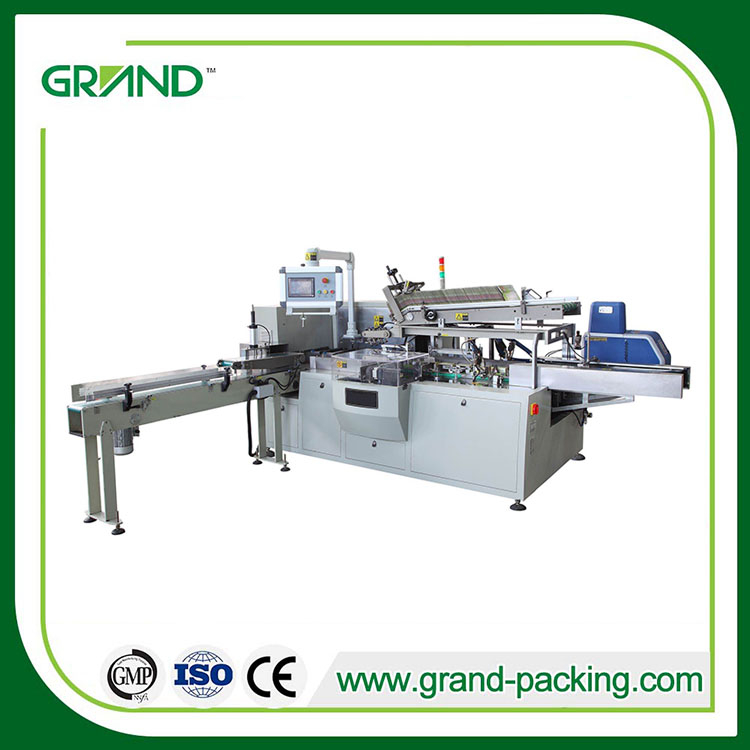

OPH-100 is applicable to carton face mask, tissue into box automatically, It is specially designed for big box cartoning. The box size and face mask quantity can be adjusted on the machine.
2. Features
1) The machine can feed face mask, open cartons, carton material, print batch number (option), spray glue and close cartons automatically. It also features compact and reasonable structure and simple operation and adjustment;
2) Servo or stepping motor, touch screen and PLC are adopted by this machine. HMI display makes the machine to be operated simply, conveniently, automatically and human-friendly;
3) Automatic material sorting and conveying structure can be integrated into an automatic production line to save labor cost;
4) Automatic photoelectric eye detecting and tracking system ensures that no carton will be fed when there is no material to save more packing material;
5) The machine can be adjusted conveniently for wider packing size and all specifications can be adjusted quickly;
6) Molds can be adjusted, instead of being changed, for the change of product specification;
7) The face mask cartoner can stop automatically when products are not cartoned as set and it adopts main driving motor overload protection device for safe and reliable running;
8) The machine can be customized with a flip protection cover which is featured of simple operation and beautiful appearance.
3.Technical parameters
| Model | OPH-100B | |
| Paper weight | 300-400g/m3 | |
| Max. cartoning dimension | 240mm*120mm*100mm (L*W*H) | |
| Cartoning speed | 65-80 cartons/min | |
| Power of hot melt machine | 2.32KW | |
| Motor power | 2.74KW | |
| Total power | 5.1KW | |
| Power supply | 3phase and 4wire, 380V 50Hz | |
| Machine noise | ≤80dB | |
| Air source | 0.5-0.8 Mpa | |
| Air consumption | 120-160L/min | |
| Overall dimensions | Main machine | 4000*660*1200mm (L*W*H) |
| Conveying structure | ||
| Machine weight | 1500Kg | |

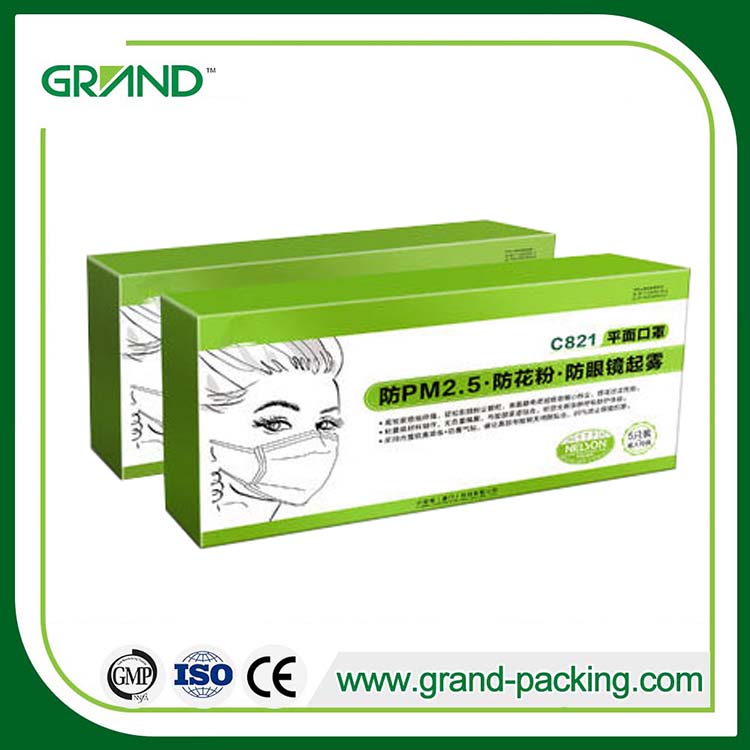

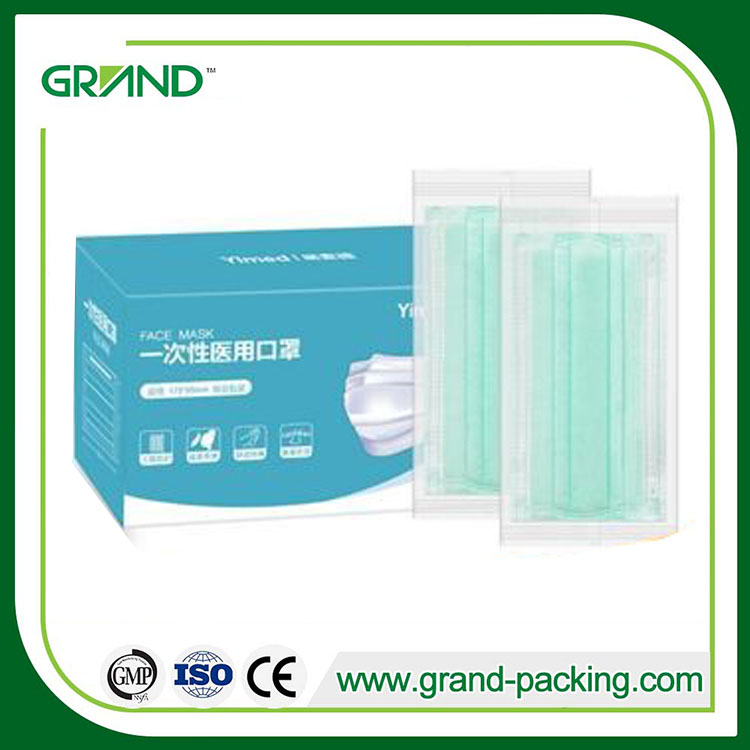

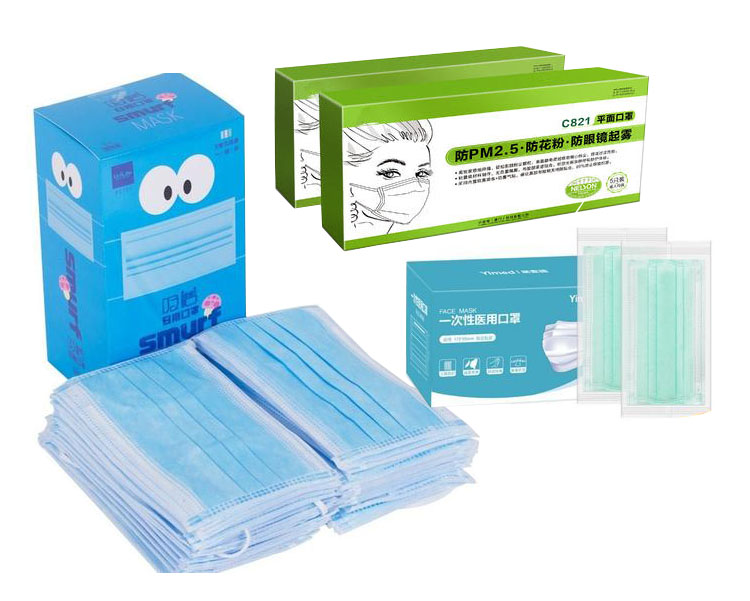

4.Sample
Service 3: We will dispatch engineers to your site for machine installation and commissioning, and also do the training for your technicians.
Service 4: We makes guarantee of the machine for 12 (twelve) months. During this Warranty period, the seller will provide free spare parts that cause by the machine’s quality within 10 days by fast courier upon receipt of buyer’s notice.(we will also provide one set of spare parts /wear &tear parts to customer along with the shipment of the machine.
Service 5: We warmly welcome the suggestions from customer to make us grow better and produce better machine along with providing better service to customer, and create more value for customer.
Service 6: Before placing the order or before shipping, welcome to our factory to take a visit to inspect our machine. we will pick you up in the airport or train station and arrange your following schedule in our city to bring you a nice journey during this visit.
ABOUT US
Hunan Grand Packing Machinery Co.,Ltd is specialized in the pharmaceutical and packing machinery for more than 10 years, such as plastic ampoule forming filling and sealing machine, capsule filling machine, blister packing machine, strip packaging machine, cartoning machine etc. We have provided services and machines to many different countries and regions in the whole world, such as Indonesia, Thailand, Malaysia, Philippines, New Zealand, Korea,the Middle East area, Poland, Belgium, France, UK, Greece, Italy, Turkey, USA, central and south America such as Trinidad and Tobago,Mexico, Brazil, Russia, Ukraine, UZ, Tunisia, Algeria, Morroco etc. And we always gain the good reputation from customer both from the machine quality and after sales service.
customer visit at our factory and our visit to customer
Our factory
We are cooperating with various kinds of factories and companies in different fields, including pharmaceutical factory, food factory, supplement factory, agrochemical factory such as for pesticide, fertilizer, personal care product factory, such as for cosmetic product, daily use product, stationery factory, hardware factory etc.
