ZP-420/ZPT-420
GRAND machinery
842230309

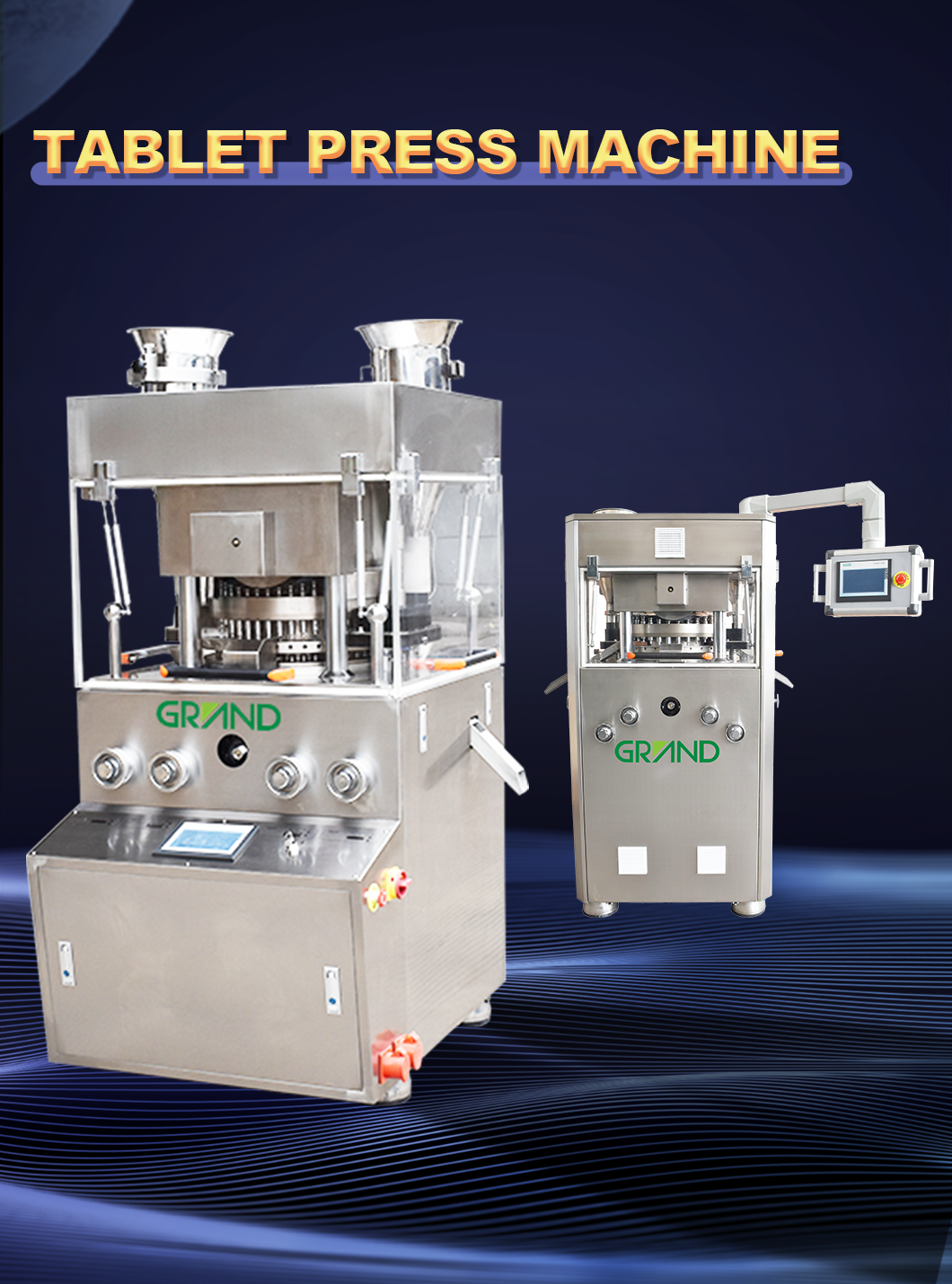

The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece, be carved characters, special shapes and double color piece prescription. It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, foods, electronics.
1. Service Conditions of Tablet Press
1.1 Working environment:
The working environment conforms to relevant requirements of GMP specification.
1.2 Material pressing requirement
1.2.1 Granule requirement
Granule size range: 12-60 meshes, good compressibility and mobility;
Synthetic medicine starch tablet: the granules should be uniform and not moist; the proportion of fine powder (above 60 meshes) in the granules should not exceed one third;
Traditional Chinese medicine granules: pure extract, semi-extract and raw powder granules should not be moist and should have certain mobility.
1.2.2 Dry powder
It is applicable to direct powder tabletting, and the pressed powder should have certain compressibility and mobility.
1.3 Tabletting form:
The machine can be used for pressing common round tablets, large tablets, abnormal tablets, special abnormal tablets, single/double-face carved tablets, cartoon tablets, etc.
1.4 Power supply requirement
380V, 50Hz, three-phase five-wire system, no mutual interference between N line and PE line.
Performance
The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece, be carved characters, special shapes and double color piece prescription. It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, foods, electronics.
Main Features
1. Peripheral casing is closed form which is made of all stainless steel , internal mesa adopt stainless steel material, it can keep the surface glossy and prevent cross contamination and meet GMP requirement.
2. With oil seal ring on punches, prevent oil from pollution tablet and powder leakage.
3. With dust seal ring on punches, avoid powder leakage from turret table.
4. It is equipped with variable frequency speed control device for electrical control, convenient operation, steady running, it is safe and accurate.
5. It is equipped with overload protection device, when pressure overload, it can stop automatically.
6. Improved thicker upper pressing wheel to increase pressure 100kn to 120kn for stable production.
7. Being the leader in trying to use semi-automatic lubrication device and the top of rotary table is equipped organic glass dust prevention device.
8.Mould length from 115 to 133.6mm, improve abrasion resistance and guidance quality.
9. It is equipped with powder absorbing device , can absorb indoor dust .
10. Wearing parts like orbit, feeder, hopper, drive worm, powder taking equipment and it has general structure with ZP33 type product, it is helpful for standardization, generalization and seriation.
2. Technical Parameters of ZPT420D Full-automatic Tablet Press
Model Parameter | ZPT420-31D | ZPT420-35D | ZPT420-45D | ZPT420-55D |
Punch pin number | 31 | 35 | 45 | 55 |
Punch diameter | 26mm | 22mm | 19mm | 16mm |
Die diameter | 34mm | 26mm | 22mm | 19mm |
Production range (10,000 tablets/h) | 111600 | 126000 | 162000 | 198000 |
Rotating speed (rmp) | 0-30 | |||
Maximum pressure | 100KN | |||
Maximum filling depth | 15mm | |||
Tablet thickness | 0.5~6mm | |||
Maximum tablet diameter | Ф20mm | Ф13mm | Ф11mm | Ф10mm |
Maximum abnormal axis size | <25mm | <21mm | <18mm | <13mm |
Punch length | 133.6mm | |||
Working noise | ≤70dB | |||
Total power | 5.5KW/380V,50Hz,three-phase five-wire system | |||
Bounday dimension of equipment | 1240*850*1850 mm | |||
Net weight of equipment | 1750kg | |||
Remark | The maximum production refers to the maximum production realized under the conditions of round tablets, minimum tablet diameter and maximum rotating speed. The production is influenced by tablet diameter and tablet type. |
Service 3: We will dispatch engineers to your site for machine installation and commissioning, and also do the training for your technicians.
Service 4: We makes guarantee of the machine for 12 (twelve) months. During this Warranty period, the seller will provide free spare parts that cause by the machine’s quality within 10 days by fast courier upon receipt of buyer’s notice.(we will also provide one set of spare parts /wear &tear parts to customer along with the shipment of the machine.
Service 5: We warmly welcome the suggestions from customer to make us grow better and produce better machine along with providing better service to customer, and create more value for customer.
Service 6: Before placing the order or before shipping, welcome to our factory to take a visit to inspect our machine. we will pick you up in the airport or train station and arrange your following schedule in our city to bring you a nice journey during this visit.
ABOUT US
Hunan Grand Packing Machinery Co.,Ltd is specialized in the pharmaceutical and packing machinery for more than 10 years, such as plastic ampoule forming filling and sealing machine, capsule filling machine, blister packing machine, strip packaging machine, cartoning machine etc. We have provided services and machines to many different countries and regions in the whole world, such as Indonesia, Thailand, Malaysia, Philippines, New Zealand, Korea,the Middle East area, Poland, Belgium, France, UK, Greece, Italy, Turkey, USA, central and south America such as Trinidad and Tobago,Mexico, Brazil, Russia, Ukraine, UZ, Tunisia, Algeria, Morroco etc. And we always gain the good reputation from customer both from the machine quality and after sales service.
customer visit at our factory and our visit to customer
Our factory
We are cooperating with various kinds of factories and companies in different fields, including pharmaceutical factory, food factory, supplement factory, agrochemical factory such as for pesticide, fertilizer, personal care product factory, such as for cosmetic product, daily use product, stationery factory, hardware factory etc.
