Application
This is our 2 sterile flocked collection devices strip packing machine, the sterile flocked collection device, also called sterile foam swab sachet packing machine, is a must for use during COVID-19 pandemic.It can also be used as the cotton swab( also called cotton bud) sachet packing machine to pack required quantity of cotton bud into the sachet.
The working process is as following:
The foam swab feeding onto the machine---foam swab conveying and dropping into the form strip sachet, the quantity can be adjusted, such as 1/2 or else---strip sachet sealing--final strip sachet punching and cutting( one by one or in strip as required)--final product conveying.
Machine overview：

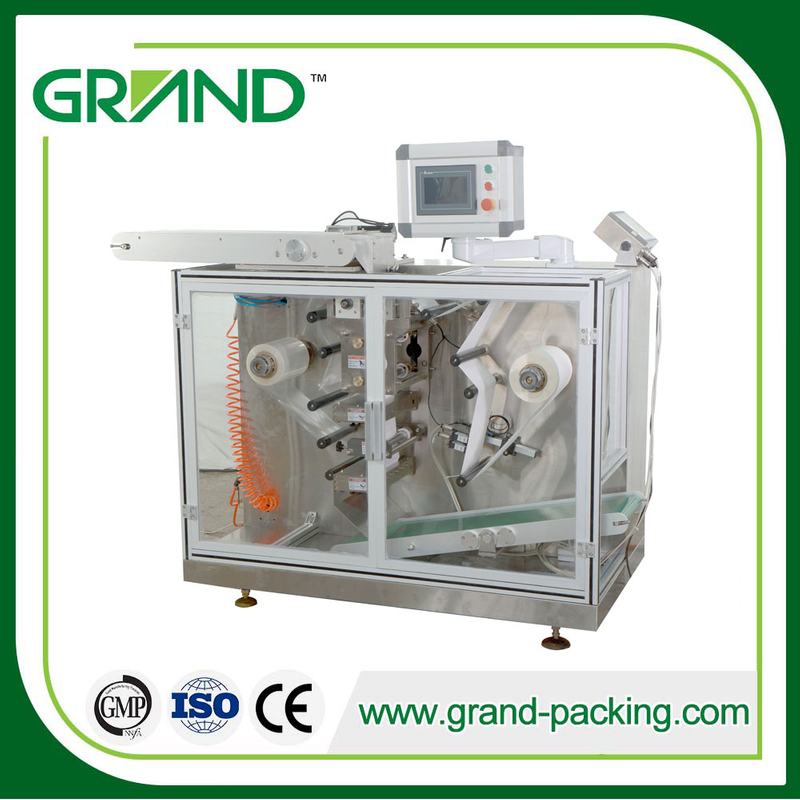

The machine model is NSL-260B/350B, it is a new generation of automatic double-aluminum strip sachet packing machine, the latest developed product of our company. This machine is novel in design and advanced in structure. It adopts PLC touch screen control system and has such advantages as high efficient, low noise and easy operation. It’s equipped with material feeding structure, which applies vibrating type for arrangement, and equipped with photoelectric monitor device. This machine can control feeding material automatically, set the cutting plates optionally and finish the procedures of material conveying, material charging, sealing, imaginary line, batch no, cutting and counting automatically. In addition, it can run with high speed. This machine is suitable for packing all kinds of tablets, capsules with double-aluminum strip in pharmaceutical and health product industries, and the similar tablet-shaped electronic components in electron industry; with good sealing and light-tight effect, it greatly prolongs the quality guarantee period of product, and the finished products are easy to take.
Performance Characteristics
Ø The machine shell is welded by 304 stainless steel plate with 2mm thick. The models of NSL-260 and NSL-350 are equipped with protective door for safe operation, beautiful and practical.
Ø It adopts PLC control system with touch screen. The cutting sections of medicine plate can be set and adjusted optionally on the touch screen, which can perfectly avoid the problem of changing all kinds of gears and cams for the change of packing specification and medicine type.
Ø It adopts imported temperature controller with PID to control the temperature of sealing mould, and high-level PT100 roller surface temperature-detector assembled by imported components to measure the temperature. On one hand, it can ensure that the surface temperature of sealing mould is absolutely stable and reliable; on the other hand, it directly improves the seal effect of medicine plate.
Ø It adopts stepless frequency converter, running stably and reliably, simple drive structure, convenient to maintain.
Ø This machine can also be equipped with other optional functions such as solid-ink roll coding, image marking, optical fiber detection for material lacking, and waste rejection to meet various needs of different customers.
Main Technical Parameters
Model | NSL-260B | NSL-350B |
Production Capacity | ≤1100 pcs/min | ≤1500 pcs/min |
Cutting Frequency | 40-80 times/min | 40-80 times/min |
Compressed Air | 0.45 MPa ≥0.2m3/min | 0.45 MPa ≥0.2m3/min |
Max Width of Packing Material | 250 mm | 350 mm |
Diameter of Roll Material | 300 mm | 300 mm |
Total Power | 3.75 KW | 4.0 KW |
Gross Weight | 1100 kg | 1200 kg |
Outline Dimension (L*W*H) | 1600*850*1900 mm | 1600*950*1900 mm |
Package Dimension (L*W*H) | 1800*1100*2100 mm | 1800*1200*2100 mm |
Service 3: We will dispatch engineers to your site for machine installation and commissioning, and also do the training for your technicians.
Service 4: We makes guarantee of the machine for 12 (twelve) months. During this Warranty period, the seller will provide free spare parts that cause by the machine’s quality within 10 days by fast courier upon receipt of buyer’s notice.(we will also provide one set of spare parts /wear &tear parts to customer along with the shipment of the machine.
Service 5: We warmly welcome the suggestions from customer to make us grow better and produce better machine along with providing better service to customer, and create more value for customer.
Service 6: Before placing the order or before shipping, welcome to our factory to take a visit to inspect our machine. we will pick you up in the airport or train station and arrange your following schedule in our city to bring you a nice journey during this visit.
ABOUT US
Hunan Grand Packing Machinery Co.,Ltd is specialized in the pharmaceutical and packing machinery for more than 10 years, such as plastic ampoule forming filling and sealing machine, capsule filling machine, blister packing machine, strip packaging machine, cartoning machine etc. We have provided services and machines to many different countries and regions in the whole world, such as Indonesia, Thailand, Malaysia, Philippines, New Zealand, Korea,the Middle East area, Poland, Belgium, France, UK, Greece, Italy, Turkey, USA, central and south America such as Trinidad and Tobago,Mexico, Brazil, Russia, Ukraine, UZ, Tunisia, Algeria, Morroco etc. And we always gain the good reputation from customer both from the machine quality and after sales service.
customer visit at our factory and our visit to customer
Our factory
We are cooperating with various kinds of factories and companies in different fields, including pharmaceutical factory, food factory, supplement factory, agrochemical factory such as for pesticide, fertilizer, personal care product factory, such as for cosmetic product, daily use product, stationery factory, hardware factory etc.
