GRAND PACKING
1. Application:

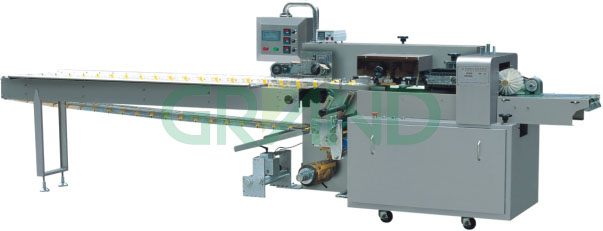

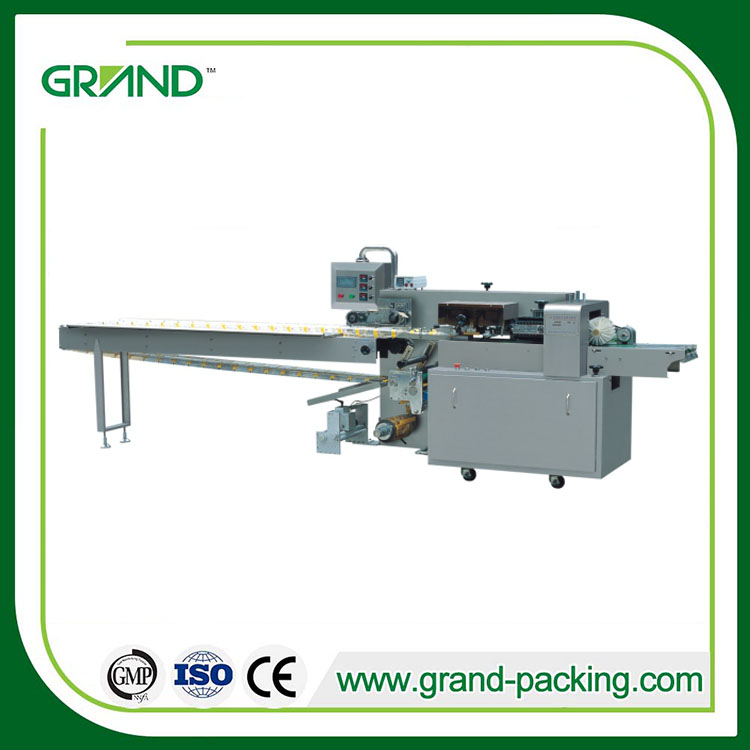

This is a flow packing machine, also called pillow packing machine, which is suitable for packing various kinds of products in bar, block and strip shape in food, medical, daily use product, pharmaceutical, such as cakes, bread,chocolate, instant noodle, napkin, soap, blisters for medicine, and now it is especially the hot equipment for packing mask such as KN95 mask, N95 mask, medical face mask, surgical face mask,disposable face mask.
2. Main features
1) The machine will not pack empty packages to save packing material;
2) Three servos control accurately; the sachet can be cut in certain length as it is set without invalid process so that both time and packing film are saved;
3) High-end electrical appliance, HMI of touch screen; parameters can be set simply and conveniently;
4) Self-diagnose function of the machine can indicate errors clearly;
5) Highly sensitive photoelectric eye mark tracking enables the machine to cut and seal more accurately;
6) Independent PID control of temperature suits all kinds of packing film well;
7) Positioning stop; no stick to cutter; no film waste;
8) Simple driving system, reliable performance and convenient maintenance;
9) All control is carried out by software for convenient function adjustment and technique upgrading.
3. Technical parameters
Sachet dimensions (mm) | Length | 30-500 |
Width | 30-110 | |
Height | 5-40 | |
Sealing strength (N/mm2) | >15N/mm2 | |
Packing speed (sachet/min) | 5-230 | |
Packing film width (mm) | 80-300 | |
Power supply | 22V, 50/60Hz, 2.4KVA | |
Machine weight (Kg) | 900Kg | |
Overall dimensions (L*W*H) | 3780*830*1560mm | |
4. Configuration list
Name | Model and specification | Brand | Qty |
Touch screen | 7 inches | KUNLUNTONGTAI | 1 |
Servo driver | SUPSD-U2-10APB | By ourselves | 1 |
Servo driver | SUPDS-U2-08APB | By ourselves | 2 |
Switching power supply | S-35-24 | MEANWELL | 1 |
E-stop switch | XB2-BS542C | SCHNEIDER | 1 |
Red and green indication light | AD16-220S | APT | 2 |
Yellow, red and green button | XB2-A-1C-2C-0C | SCHNEIDER | 3 |
Temperature controller | Three line accurate temperature control | SHANGNAN | 3 |
Solid relay | KSR-25DA | FOTEK | 3 |
Photoelectric switch | BZJ-211 | JUNGONG | 1 |
Air switch | DZ-47-60/C15 | CHNT | 3 |
DZ-47-60/C25 | CHNT | 1 | |
Servo motor | SUPSM-T-H2-130-10020 | By ourselves | 1 |
Servo motor | 80SFM-E02430 | By ourselves | 2 |
Mid sealing electromagnet | MPB1-2.5YC/220VD | XINHAO | 1 |
Conveyor | 460*120*2 | HONESTEK | 2 |
Thermocouple | K type | YATAI | 3 |
General switch | 20A-4KW | CHKO | 1 |
White relay | JQX-13F (D) | CHNT | 3 |
Detecting photoelectric switch | CX-441 | PANASONIC | 1 |
General switch socket | TYPE/ST-313 | SET | 1 |
Synchronous belt | 5M670 B25 | HONESTEK | 1 |
PLC | FPOR-C32T | PANASONIC | 1 |

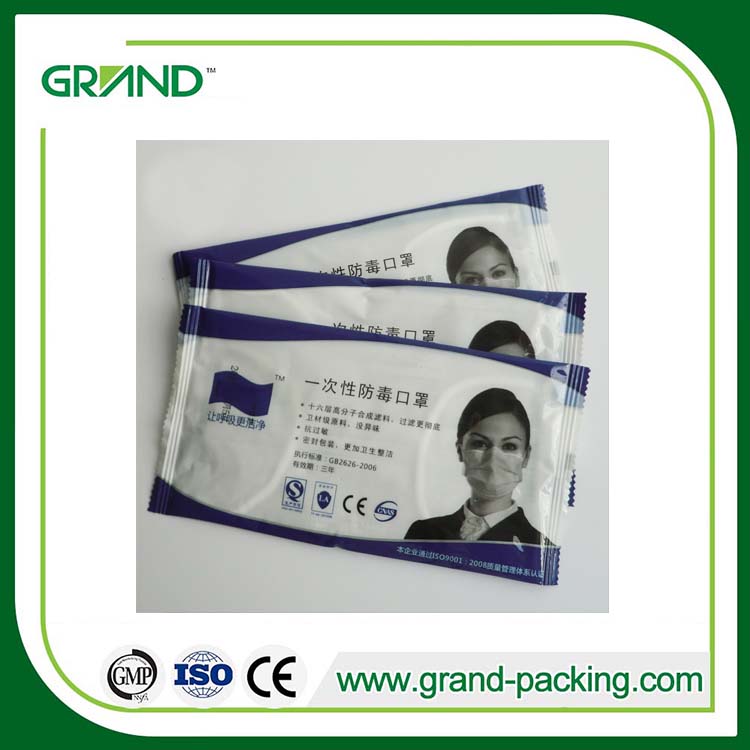

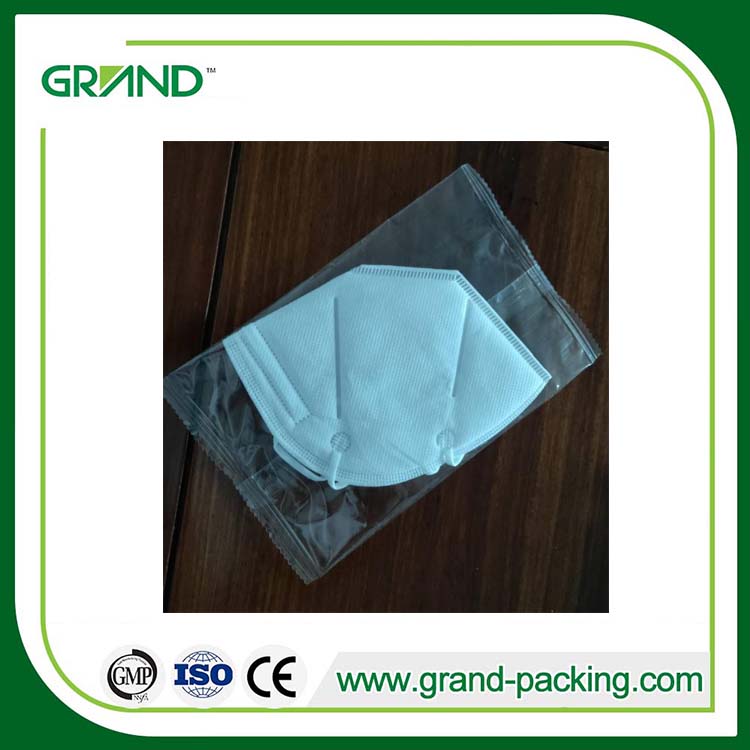

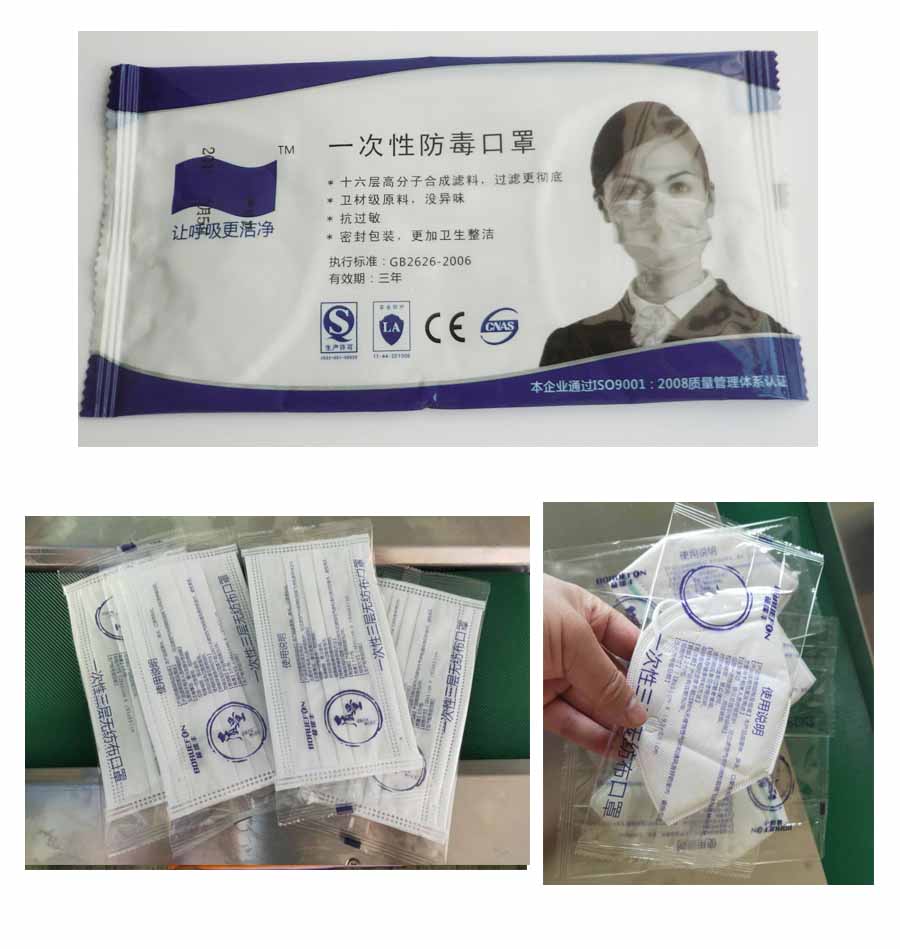

5. Sample
Service 3: We will dispatch engineers to your site for machine installation and commissioning, and also do the training for your technicians.
Service 4: We makes guarantee of the machine for 12 (twelve) months. During this Warranty period, the seller will provide free spare parts that cause by the machine’s quality within 10 days by fast courier upon receipt of buyer’s notice.(we will also provide one set of spare parts /wear &tear parts to customer along with the shipment of the machine.
Service 5: We warmly welcome the suggestions from customer to make us grow better and produce better machine along with providing better service to customer, and create more value for customer.
Service 6: Before placing the order or before shipping, welcome to our factory to take a visit to inspect our machine. we will pick you up in the airport or train station and arrange your following schedule in our city to bring you a nice journey during this visit.
ABOUT US
Hunan Grand Packing Machinery Co.,Ltd is specialized in the pharmaceutical and packing machiney for more than 10 years, such as plastic ampoule forming filling and sealing machine, capsule filling machine, blister packing machine, strip packaging machine, cartoning machine etc. We have provided services and machines to many different countries and regions in the whole world, such as Indonesia, Thailand, Malaysia, Philippines, New Zealand, Korea,the Middle East area, Poland, Belgium, France, UK, Greece, Italy, Turkey, USA, central and south America such as Trinidad and Tobago,Mexico, Brazil, Russia, Ukraine, UZ, Tunisia, Algeria, Morroco etc. And we always gain the good reputation from customer both from the machine quality and after sales service.
customer visit at our factory and our visit to customer
Our factory
We are cooperating with various kinds of factories and companies in different fields, including pharmaceutical factroy, food factroy, supplement factroy, agrochemical factroy such as for pesticide, fertilizer, personal care product factroy, such as for cosmetic product, daily use product, stationery factroy, hardware factroy etc.
