1. Brief introduction
1) Equipment introduction

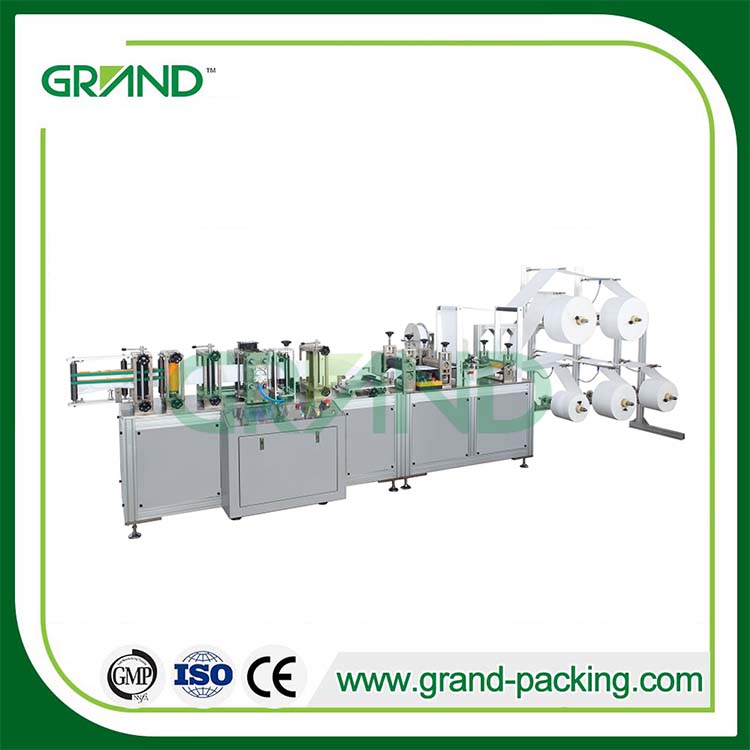

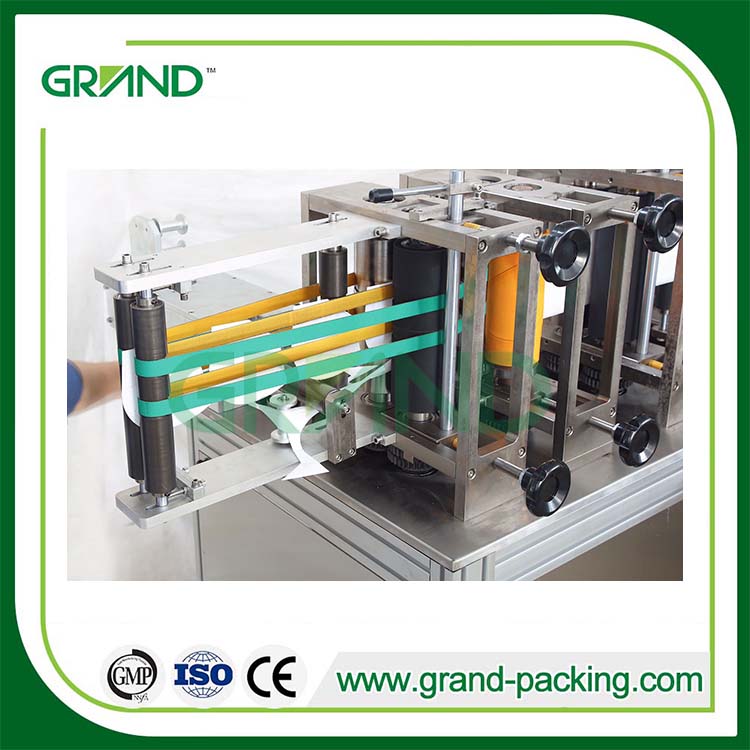

This machine can be used for automatic forming of folded N95 mask. After release, a roll of non-woven material is folded through rollers. The machine can fold non-woven material, release nose clip roll, cut clip in certain length, insert clip into non-woven edge, ultrasonic weld and seal double edge of mask and then punch mask with cutter.

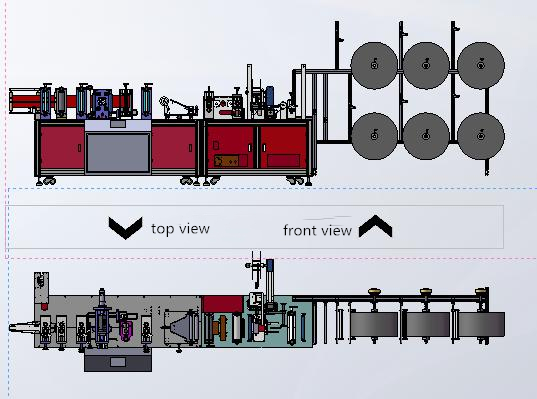

2) Overall outline design (for reference)

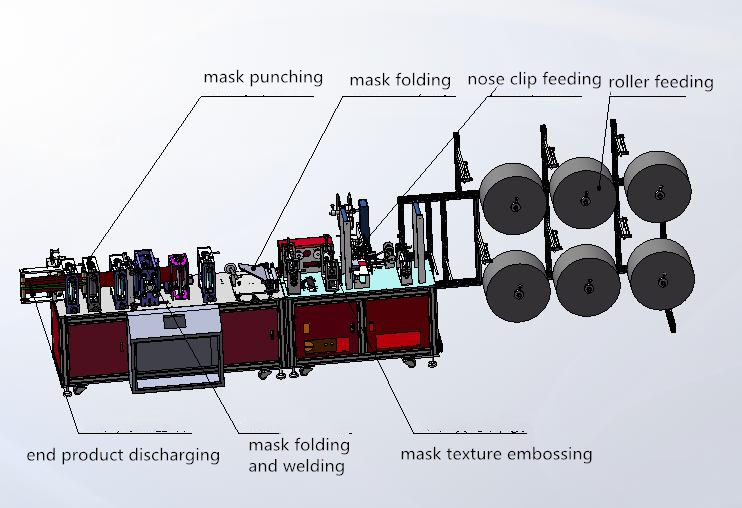

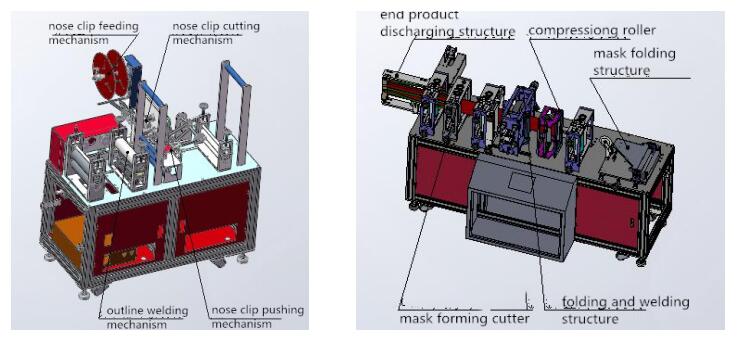

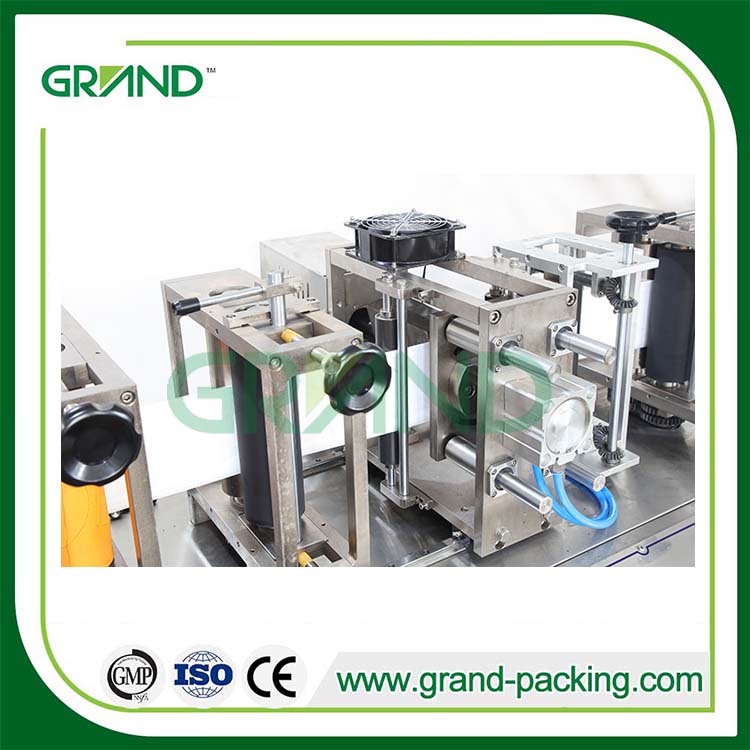

3) Equipment structure

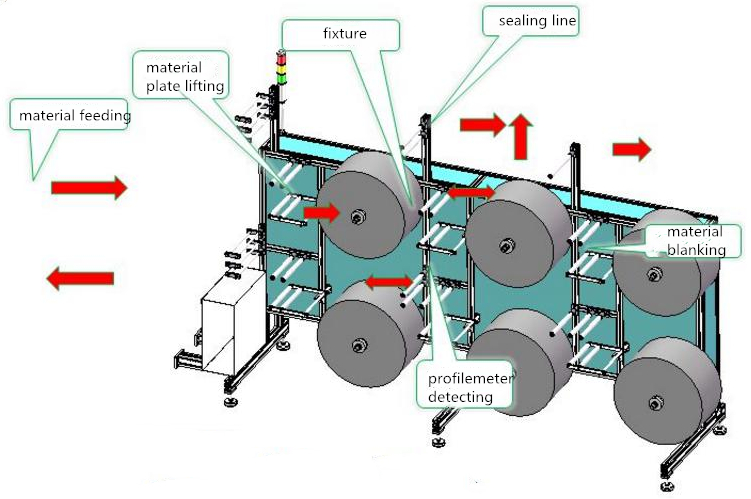

4) Flow chart
a. Material is fed onto belt of feeding device with manual trolley;
b. The belt drives the whole material plate to material plate lifting mechanism;
c. Gantry material placing mechanism can place products onto fixture;
d. The table drives fixture to the detecting station;
e. After detection, material will be fed accordingly; if OK, material is placed on the sealing line, while NG material is placed into NG channel and collected then.
5) Equipment parameters
Overall dimensions | 6700*2000*1985mm (L*W*H) |
Equipment color | International standard warm gray 1C |
Equipment weight | ≤3000KG |
Ground bearing | ≤500KG/m2 |
Power supply | 220VAC±5%，50HZ, 5KW |
Compressed air | 0.5-0.7MPa |
Air flow | 300L/min |
Working conditions | Temperature (10-35°C), humidity (5-35%), no combustible and corrosive gas and no dust (cleanness is no less than 100,000 grade) |
2. Main configuration
No. | Name | Qty |
1 | Non-woven placing rack | 6 sets |
2 | Nose clip inserting and embossing station | 2 sets |
3 | Mask folding and forming structure | 1 set |
4 | Mask folding and welding structure | 1 set |
5 | Mask punching and waste processing structure | 1 set |
6 | Material feeding structure | 1 set |
7 | Operation system | 1 set |
8 | Operation panel | 1 set |
3. Proper material
1) Material specification
Item | Non-woven | Nose clip |
Qty of hanging shaft (pc) | 6 | 2 |
Width (mm) | 240-250 | 3-7 |
Outer diameter of roller (mm) | 600 | 400 |
Inner diameter of roller (mm) | 70 | 70 |
Max. weight (Kg) | 15 | 25 |
2) Product specification
Standard mask | 160*110mm |
4. Technical features
1) Automatic counting for effective production efficiency and speed control;
2) Frequency control of operation speed according to practical needs;
3) High automation of the equipment and low requirements on operators. They only need to feed material and sort end product;
4) Modular and human-friendly design makes maintenance more conveniently;
Production efficiency | 60-85pcs/min |
Pass rate | 99% (except problems caused by improper material or operation) |
Equipment error rate (errors of the machine itself) | 2% |
5. Equipment configuration
1) Component list
No. | Name | Model | Brand |
1 | Motion controller | LQ-C041 | LEADSHINE |
2 | Touch screen | GXU3512 | SCHNEIDER |
3 | Communication cable | 9008 3m | |
4 | Frequency converter | AVT12HU22M2 | SCHNEIDER |
5 | Servo start device | LXM16DU07M2X | SCHNEIDER |
6 | Servo motor | BCH16HD07330A5C | SCHNEIDER |
7 | Power cable | VW3M5A11R03 | |
8 | Feedback cable | VW3M8A11R03 | |
9 | Switching power supply | ABL2REM24045K | SCHNEIDER |
10 | Encoder | DBS36E-S3AK02000 | SICK |
11 | Start | XB2BA31C | SCHNEIDER |
12 | Jogging | XB2BA51C | SCHNEIDER |
13 | Stop | XB2BA42C | SCHNEIDER |
14 | E-stop | XB2BAS542C | SCHNEIDER |
15 | Relay | RXM2LB2BD | SCHNEIDER |
16 | Cn1 head | VW3M4A11 | |
17 | Alarm bell | BJ-1K 24V | |
18 | Circuit breaker | NXB-63 2PC40 | CHNT |
19 | Circuit breaker | NXB-63 2PC25 | CHNT |
20 | Photoelectric switch | COR-10X | FOTEK |
2) Specification part and spare part list
No. | Name | Specification | Qty | Remark |
1 | Tool box | / | 1 set | Testing tools |
6. Notes
1) Please use spare parts and materials of proper specification in order to guarantee equipment performance;
2) Please switch off the machine and cover cutter and the raised before maintenance and error clearing when operators need to touch devices with their hands.
7. Sample
