JP-500D
GRAND PACKING
8422303090
Machine overview

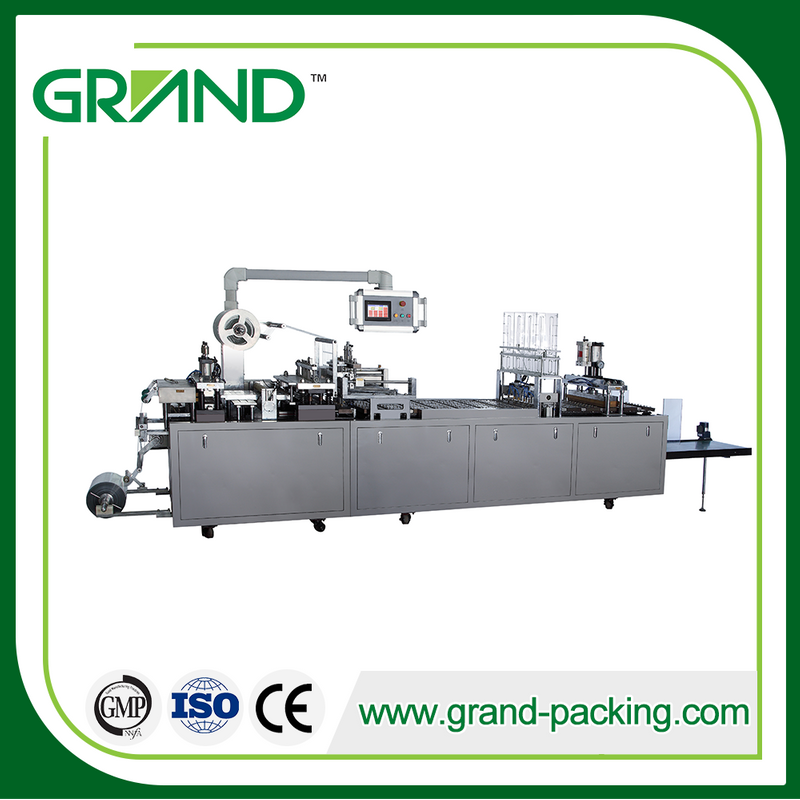

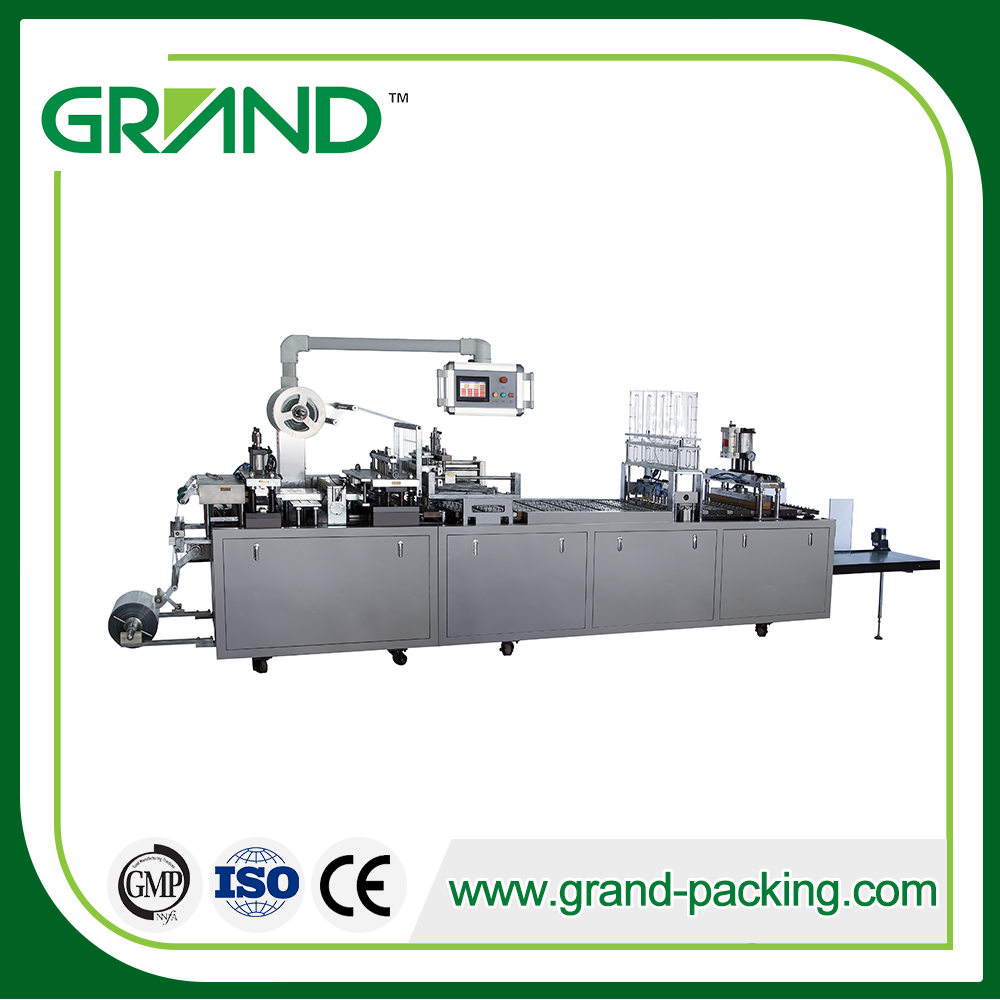

JP-500D series blister card packing machine is the new equipment which is developed by our technical department based on the mature technology from pharmaceutical packing machinery of more than ten years, and absorbing the working principle of similar machine at home and abroad. It has the feature of advanced technology, complete function, reasonable working process, easy operation, and convenient maintenance.
Machine application
This machine is suitable for the blister card packing of battery, stationery, food, medical equipment, toys, hard ward, electronics, auto parts, daily use product, cosmetic etc, such as the injector, solid gum, toy car, scissor, flashlight, battery, spark plug, lip stick, hook, shaver, pencil etc.
Main features
1. Mechanical transmission, servo motor driving, encoder control, reasonable structure, easy operation.
2. 304 stainless steel frame, beautiful appearance, convenient for cleaning.
3. PLC control system, frequency speed adjust, which will help to reduce the noise and improve the running stability of the machine.
4. Photoelectrical control, auto detection.
5. Separated card feeder, which will reduce the labor force.
6. The whole machine is separately designed, it is conven
| Cutting frequency(times/min) | 12-25times/min |
| Maximum travel range | 40-200mm |
| Maximum forming area | 480×200mm |
| Standard forming depth | 40mm( can be customized) |
| Air pressure | 0.5-0.8Mpa |
| Air flow | ≥0.5m3/min |
| Total power | 380V 50Hz 11.8KW |
| Overall dimension | 5800×1050×1850mm（L×W×H） |
| Machine weight | 2100kg |
ABOUT US
Hunan Grand Packing Machinery Co.,Ltd is specialized in the pharmaceutical and packing machiney for more than 10 years, such as plastic ampoule forming filling and sealing machine, capsule filling machine, blister packing machine, strip packaging machine, cartoning machine etc. We have provided services and machines to many different countries and regions in the whole world, such as Indonesia, Thailand, Malaysia, Philippines, New Zealand, Korea,the Middle East area, Poland, Belgium, France, UK, Greece, Italy, Turkey, USA, central and south America such as Trinidad and Tobago,Mexico, Brazil, Russia, Ukraine, UZ, Tunisia, Algeria, Morroco etc. And we always gain the good reputation from customer both from the machine quality and after sales service.
Our Service
1.We will dispatch engineers to your site for machine installation and commissioning, and also do the training for your technicians.
2.We makes guarantee of the machine for 12 (twelve) months. During this Warranty period, the seller will provide free spare parts that cause by the machine’s quality within 10 days by fast courier upon receipt of buyer’s notice.(we will also provide one set of spare parts /wear &tear parts to customer along with the shippment of the machine.
3.We warmly welcome the suggestions from customer to make us grow better and produce better machine along with providing better service to customer, and creat more value for customer.
4.Before placing the order or before shipping, welcome to our factory to take a visit to inspect our machine. we will pick you up in the airport or train station and arrange your following schedule in our city to bring you a nice journey during this visit.
