Automatic Capsule Filling Machine:The Machine Introduction Manual

Working Principle

Turn table

Precise design is applied to the Turn table, (segments and segment holders). The turn table is rotated by Index movement.The precision of segment is improved by the usage of a straight bearing.

Closing & Discharge

The Capsule closing and Discharge assemblies are designed for easy detachment and fitting. This makes Maintenance and Cleaning very convenient for the user. The discharge parts are designed to prevent a vortex during capsule discharge.

Capsule feeding

The empty capsules are provided to the segment through the feeder. The feeder is designed for smooth feeding with a race way and side pusher. The simple construction of the race way and side pusher makes them quick and easy to change.

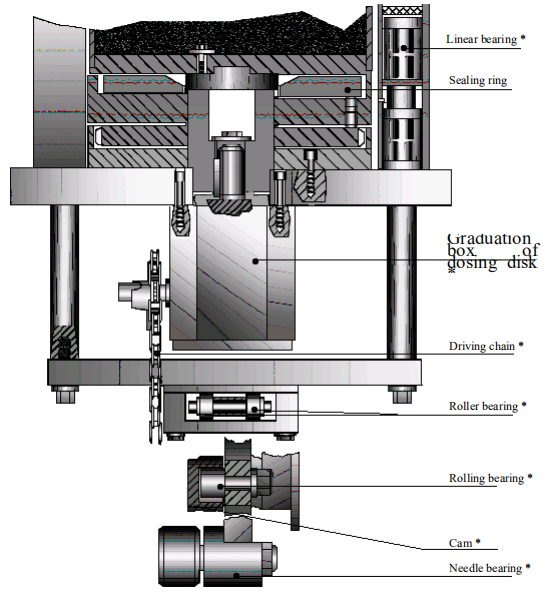

Filling combination

Beneficial performance for users

1. Filling structure is handled by modularity, as well as precious design, reliability and low wear and tear.

2. With the function of auto detection when insufficient powder、insufficient capsules (optional function) and

malfunction happens. The machine can alarm and stop running automatically.

3. Electric control system adopts PLC,and velocity modulation Electric parts choose famous trade mark,

optional printing production data sheet;

4. Production area and driving area are separated completely. All components are easy to dismantle due to

special design. The material used meets pharmaceutical industrial requirements.

5. New model structure, twelve work-position, whole close and intermittent turntable, upper and lower module’s

one-way movement is very safety, close structure ensures the product avoiding oil pollution completely

meets GMP stipulation.

6. Adopt bore filling dosage.

7. Transmission position: adopt high precision graduation structure.

Filling mechanism

1. Power filling

2.Granule filling

3.oil filling

4.Capsule-feeding Mechanism

5.Driving Mechanism of Dosing Unit
